OMRON

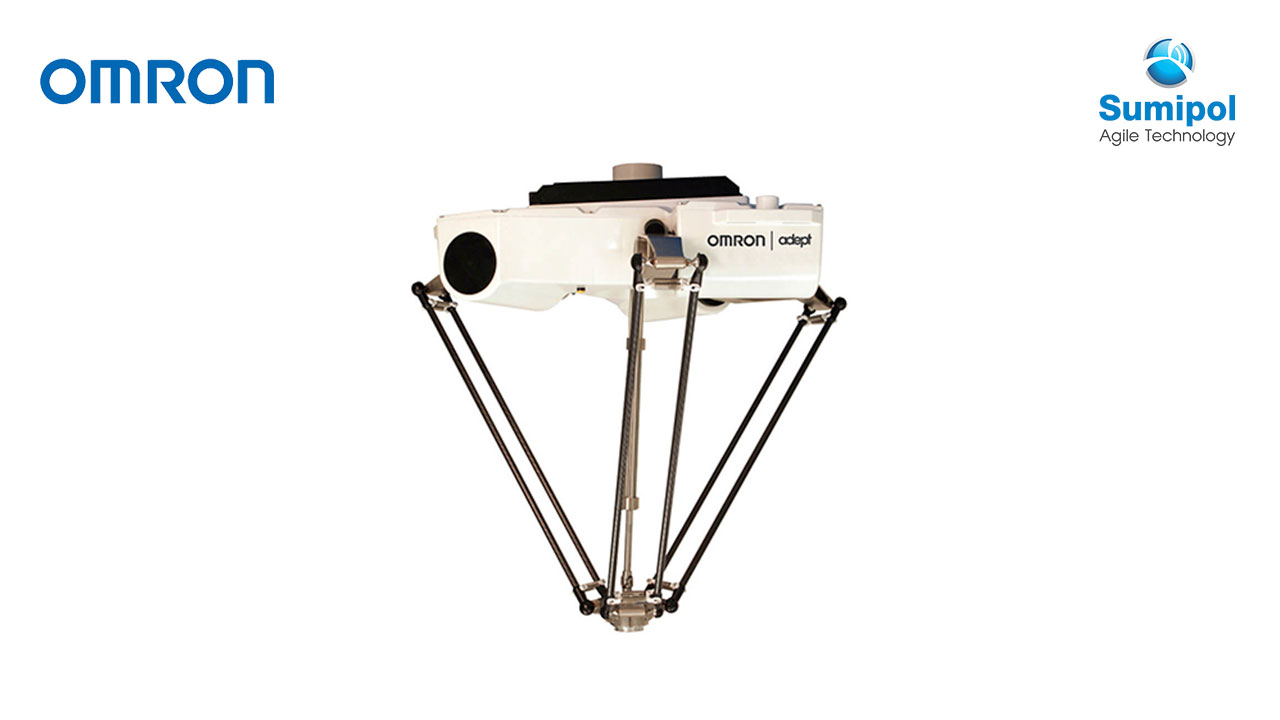

Hornet 565

Parallel robot ideal for use in the food and beverage, pharmaceutical, and healthcare industries. Maximum payload 8 kg.

  • Programmable through ACE software and eV+ language, or through the familiar IEC 61131-3 when using ePLC Connect
  • The amplifier and controller built into the robot reduces the number of cables
  • Tracks up to a conveyor speed of 1.4 m/s
  • Designed with a high payload to support multi-hand (multi-picking)
  • Supports fast Pick & Place on a fast conveyor
  • Helps reduce mounting cost and robot vibration
  • Maximum working diameter 1,130 mm
  • Working height 425 mm
  • Maximum payload 8 kg
  • Weight 52 kg





Hornet 565

Product nameHornet
Size565
Number of axes3 Axis4 Axis
IPStandardIP65/67StandardIP65/67
Part Number1720[ ]-456001720[ ]-456101720[ ]-456041720[ ]-45614
Mountinginverted
Working volumeX,Y axis (stroke)1130 mm
Z axis (stroke)425 mm
theta axis (rotation angle)±360°
Maximum Payload8 kg3 kg
Repeatability±0.10 mm
Cycle times,
sustained,
20°C
ambient *1
Payload 0.1 kg0.32 s0.35 s
Payload 1.0 kg0.34 s0.37 s
Payload 3.0 kg0.38 s0.42 s
Power Requirements24 VDC: 6 A
200 to 240 VAC: 10 A, single-phase
ProtectionBaseTopside of robotIP20IP65IP20IP65
Underside of robotIP65
Platform, ArmsIP67
Environment
Requirements
Ambient Temperature1 to 40°C
Humidity Range5 to 90% (non-condensing)
Weight52 kg
Basic
configuration
ControllereAIB
On-board I/O (Input/Output)12/8
Conveyor tracking input2
RS-232C serial communications
port
1
Programming environmentACE, ePLC
ACE SightYes
ePLC ConnectYes
ePLC I/OYes
Connectable controller *2SmartController EX, NJ/NX/NY Series *3

*1. Adept cycle, in mm (25/305/25)
*2. Choose a controller to suit your application.
*3. The robot version 2.3.C or later is required to connect with the NJ/NX/NY Series.
