PATLITE

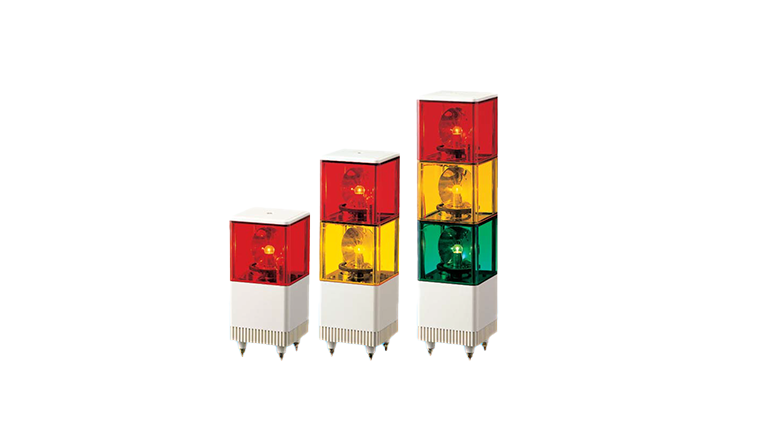

KJT 116mm square Revolving Light

The KJT Series combines highly visible multi-tiered rotating lights with sound. It offers doubly effective warning signals.

※PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in KJT-A, C and D types outside of Japan. For additional information regarding this issue, please contact your local PATLITE sales representative.

DIMENSIONS – 116mm square
RATED VOLTAGE – 24V AC/DC, 25mA
– 100V AC, 40mA
– 200V AC, 30mA
AUDIBLE STYLE – Rotating (each alarm and each light can be operated separately or together)
– Dry contact closure cush as switches or relay contacts
– Open-collector transistor (NPN)
– Direct voltage control
SOUND SELECTION – 32 pre-recorded alarm sounds
– High quality digital recording
VOLUME – Maximum 90dB at 1 meter
BODY STYLE – Pre-assembled, pre-wired only for module colors specified, lens interchangeable after purchase
BODY COLOR – Body: Light gray
STACKABLE TIERS – 1-3 lights may be stacked
GLOBE COLOR – Red
– Amber
– Green
– Blue
GLOBE MATERIAL – Acrylic Resin
PROTECTION RATING – IP-23
OPTIONS – SZ-008
