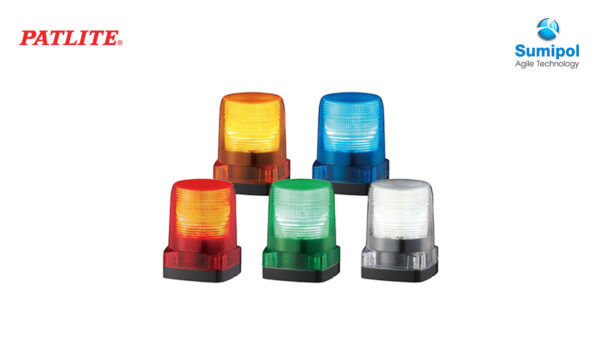

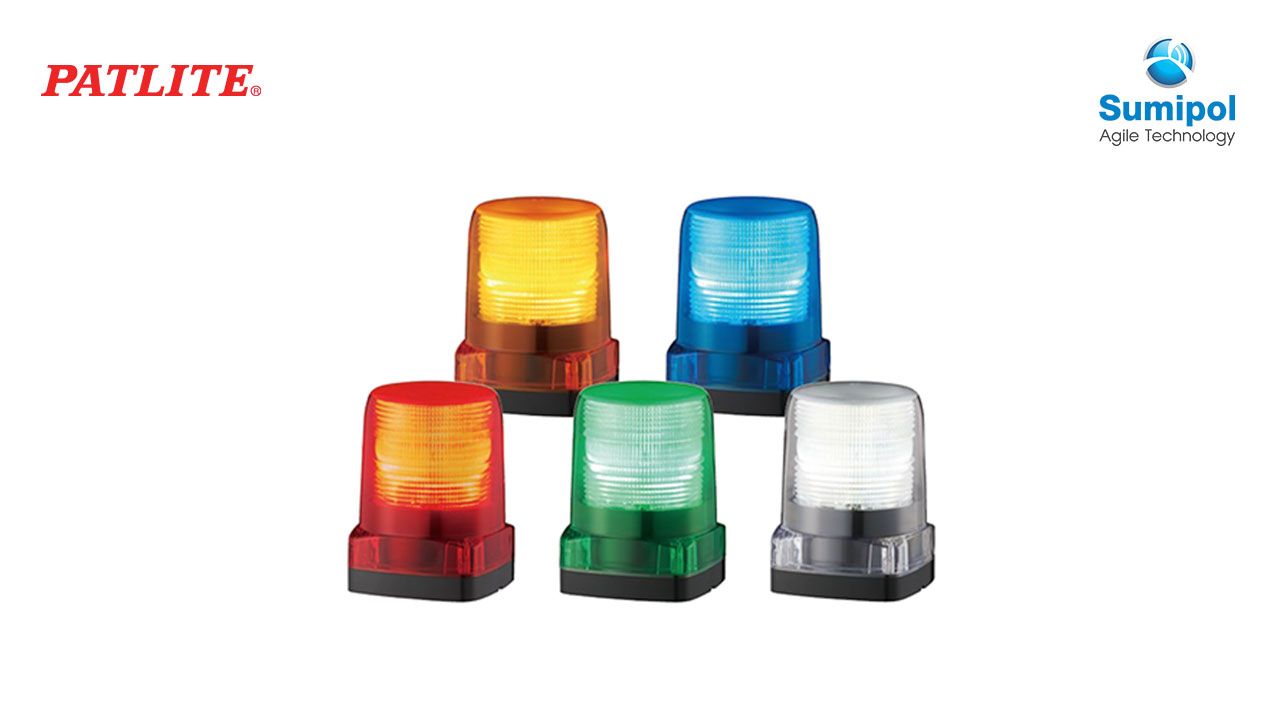

LFH Φ100 LED Signal Light
PATLITE

LFH Φ100 LED Signal Light

Patlite’s indoor/outdoor LED Signal Light has superior visibility, even in daylight, with a night-time visibility of 492 feet (150m).

Download Catalogue
Categories: ,

Patlite’s indoor/outdoor

  • LED Signal Light has superior visibility, even in daylight, with a night-time visibility of 492 feet (150m).
  • The long-life LED offers low maintenance for placement in hard-to-service locations.
  • The Model LFH LED Signal Light provides about 110 flashes per minute with a triple-flash pattern.
  • It also is designed to resist water (IP66) and is durable for mounting on machinery with its vibration resistance of 9G.
  • Available with UL certification in 12VDC, 24VDC, 48VDC and 90-250VAC,
  • the LFH has CE markings for the 12VDC, 24VDC and AC90-250VAC types.
Model Specifications



DIMENSIONS – φ100 diameter
RATED VOLTAGE – DC 12V
– DC 24V
– DC 48V
– AC 90 – 250V
FUNCTIONS – Dimming
– Triple-flash (110 fpm ±10%)[LFH]
(140 fpm ±10%)[LFH-S]
MOUNTING – Direct or use optional brackets
BODY STYLE – For Indoor or Outdoor Use
BODY COLOR – Black Body
LIGHT SOURCE – High-power LED
CONFORMITY STANDARDS – CAN/ULC-S526-M87
– CE (Excluding 48V Model)
– UL 1638
– FCC Part 15, Subpart B Class A (Excluding 48V Model)
-RoHS Directive
PROTECTION RATING – IP66 (IEC60529)
REMARKS Colors Available:
– Red
– Amber
– Green
– Blue
– Clear/White
OPTIONS – SZ-007 Standard Mounting Bracket
