MAGNETIC CHUCK

Material  Magnetic chuck body : Structural steel(SS)

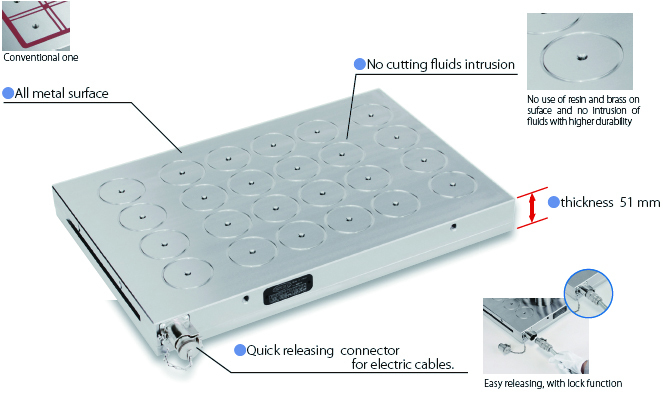

Feature

  • [Standard Accessory]Controller : 1 set

Strong Adsorption Forces 6150N,

… but least chips on work-surfaces(per pole of dia.70mm under Max conditions)

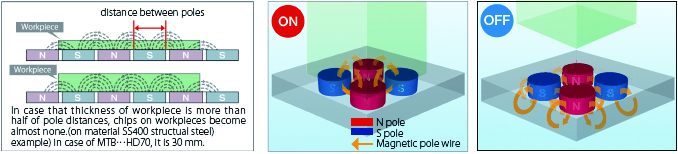

Cutting thrust on milling is not in the same directions, so need strong adsorption force. Each magnetic pole contains strong neodymium magnets to generate strong force. As Magnetism fl ows from N pole to S pole within workpiece, least chips on workpieces.



Operating Efficiency Improvement

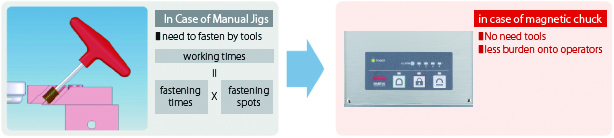

Manual jigs need tool operations, but magnetic chuck only push the buttons



Process integrations

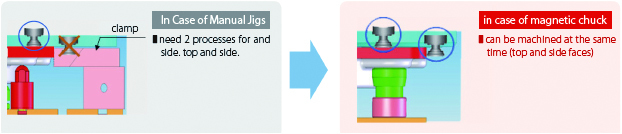

No interference on cutting tools being clamped from the bottom.

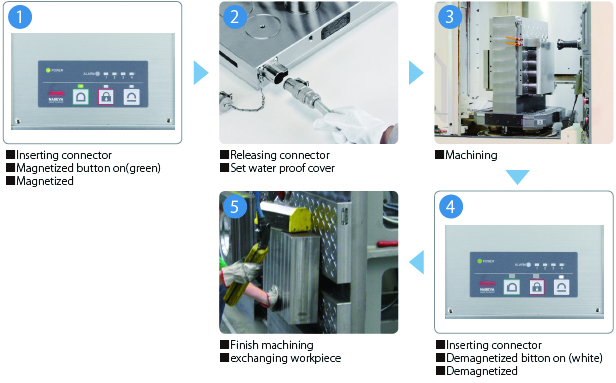

Operating procedure (easy operation) Only push buttons and connectors detachable.



Custom Made, MTB Chuck

Sometimes, Standard Magnetic chucks can not be placed on machine table due to irregular table shape.
Custom made magnetic chuck can be manufactured for such kind of customers.

Standard MTB506HD70 / Custom Made MTB506HD70



Examples for custom made MTB chucks
①Change the pitch of magnetic poles.
②Change the outside dimensions.
③Delete clamping grooves on both sides.
There can be some restrictions on making custom made chucks.

Specifications for MTBR
Magnetic pole sizeNumber of magnetic polesAdsorption force (per pole) (N)Adsorption force (tota) (kN)ControllerRated current AWeight (㎏)
MTBR500HD70S1φ7016615098NMC-1008.471
MTBR630HD70S1φ70326150196NMC-10016.4114
 Specifications for MTBP
Magnetic pole sizeNumber of magnetic polesAdsorption force (per pole) (N)Adsorption force (tota) (kN)ControllerRated current AWeight (㎏)
MTBP500HD70S1φ7016615098NMC-1008.488
MTBP630HD70S1φ70306150184NMC-10015.2144
