ERON

Q-LOCK COUPLING

Material: Main body : Stainless steel(SUS440C)

Heat treatment: Main body : Hardened(HRC55)

Feature

  • Air blowing for checking seating.
  • Stronger clamping force for heavy cutting.
  • Hydraulic power only for un-clamping and hydraulic pipe can be detached on machining operations.
Categories: ,

Usage



Specifications

Proof pressures 10MPa
Orifi ce area 8.7(mm2)
Fluid air, oil
Acceptable alignment amount 0.2mm
Normal working pressure 5MPa
Min. working pressure 0.1Mpa

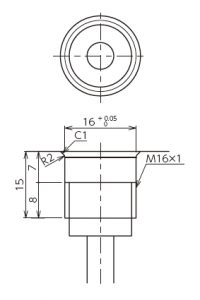

Dimensions of mounting process.



Compatible Chart

Q-lock element Compatible socket Compatible plug
QLT19 QLC07S QLC07P
QLT26 QLC07S QLC13P
QLT32 QLC09S QLC15P
QLT40 QLC17S QLC13P
QLA19 QLC10S QLC07P
QLA26,QLH26 QLC09S QLC13P
QLA32,QLH32 QLC07S QLC19P
QLH40 QLC17S QLC14P
QLH48 QLC19S QLC19P
TypeNo.Outer DiameterOverall DiameterWeight (g)
SocketQLC07S162131
SocketQLC09S162335
SocketQLC10S162437
SocketQLC12S162641
SocketQLC17S163151
SocketQLC19S163355
PlugQLC07P1622.331
PlugQLC13P1628.346
PlugQLC14P1629.348
PlugQLC15P1630.350
PlugQLC19P1634.358
