ERON

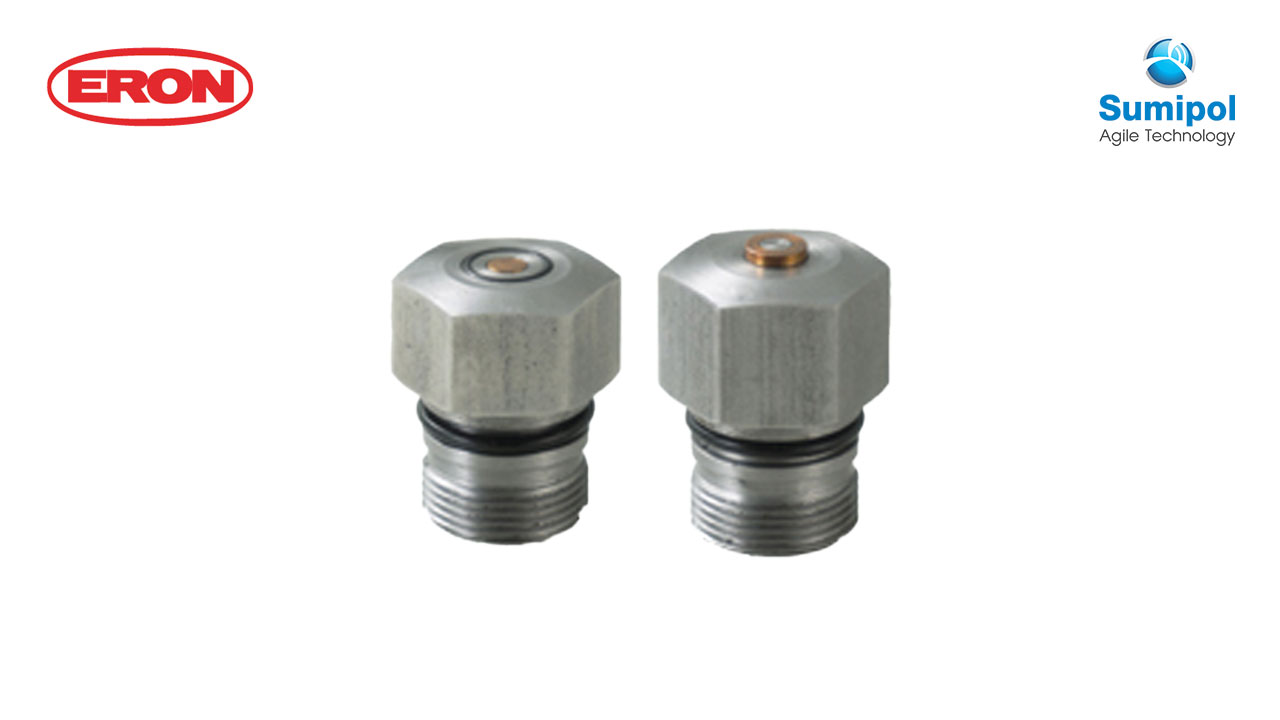

Q-LOCK COUPLING

Material: Main body : Stainless steel(SUS440C)

Heat treatment: Main body : Hardened(HRC55)

Feature

  • Air blowing for checking seating.
  • Stronger clamping force for heavy cutting.
  • Hydraulic power only for un-clamping and hydraulic pipe can be detached on machining operations.

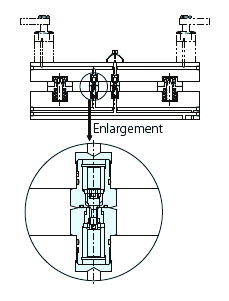

Usage




Specifications


Proof pressures10MPa
Orifi ce area8.7(mm2)
Fluidair, oil
Acceptable alignment amount0.2mm
Normal working pressure5MPa
Min. working pressure0.1Mpa

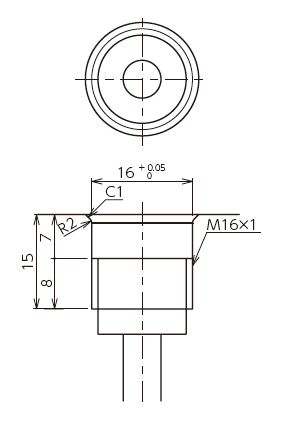

Dimensions of mounting process.




Compatible Chart


Q-lock elementCompatible socketCompatible plug
QLT19QLC07SQLC07P
QLT26QLC07SQLC13P
QLT32QLC09SQLC15P
QLT40QLC17SQLC13P
QLA19QLC10SQLC07P
QLA26,QLH26QLC09SQLC13P
QLA32,QLH32QLC07SQLC19P
QLH40QLC17SQLC14P
QLH48QLC19SQLC19P
TypeNo.Outer DiameterOverall DiameterWeight (g)
SocketQLC07S162131
SocketQLC09S162335
SocketQLC10S162437
SocketQLC12S162641
SocketQLC17S163151
SocketQLC19S163355
PlugQLC07P1622.331
PlugQLC13P1628.346
PlugQLC14P1629.348
PlugQLC15P1630.350
PlugQLC19P1634.358
