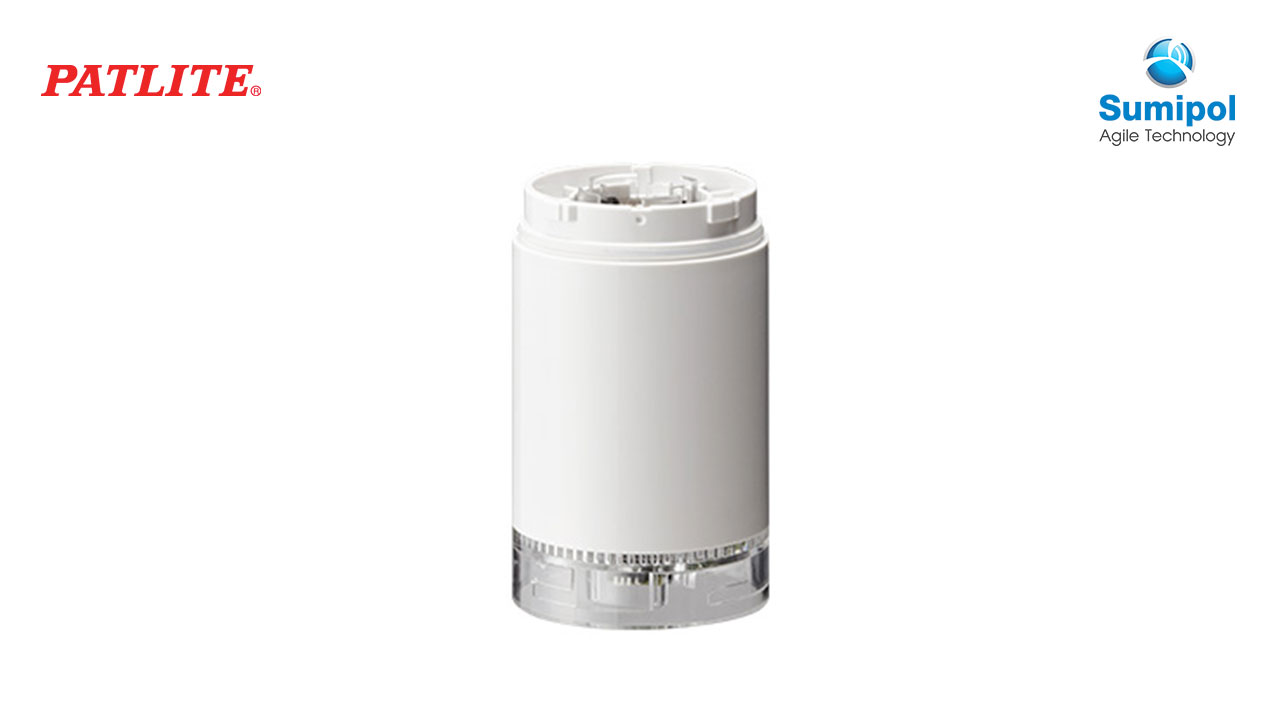

WDT-5LR-Z2 Wireless Data Acquisition System LR5 Transmitter

Wireless data retrieval system For transmitting data wirelessly to a host PC For checking, tracking and analyzing data in Real-Time

Download Catalogue
Categories: ,

Wireless data retrieval systems are cost-effective IIoT-enabled add-ons

  • For select PATLITE signal towers, this system allows the signal tower to Can transmit device status change information wirelessly Go to host PC For checking, tracking and analyzing data in Real-Time
  • To identify stuck points in production Raise the efficiency of supervision and control Optimize productivity and improve overall equipment efficiency (OEE) with a complete network solution.

WDS

RATED VOLTAGE – DC19.0V to DC26.4V
PROTOCOLS – Telecommunication Protocols: IEEE-802.15.4
(Wireless Communications)
FUNCTIONS – Connected Model: LR5 type Tiered Signal Tower Body unit top attachment
– Communication Frequency: 2405 MHz – 2480 MHz (16 channels)
– Communication distance: About 30m from source
(Reference Value)
– Number of Available Contacts: Six points
(red, amber, green, blue, white, buzzer)
CONFORMITY STANDARDS – Radio Law Authorized Country: Japan (ARIB STD-T66)
United States (FCC)
Europe (CE)
