ERON

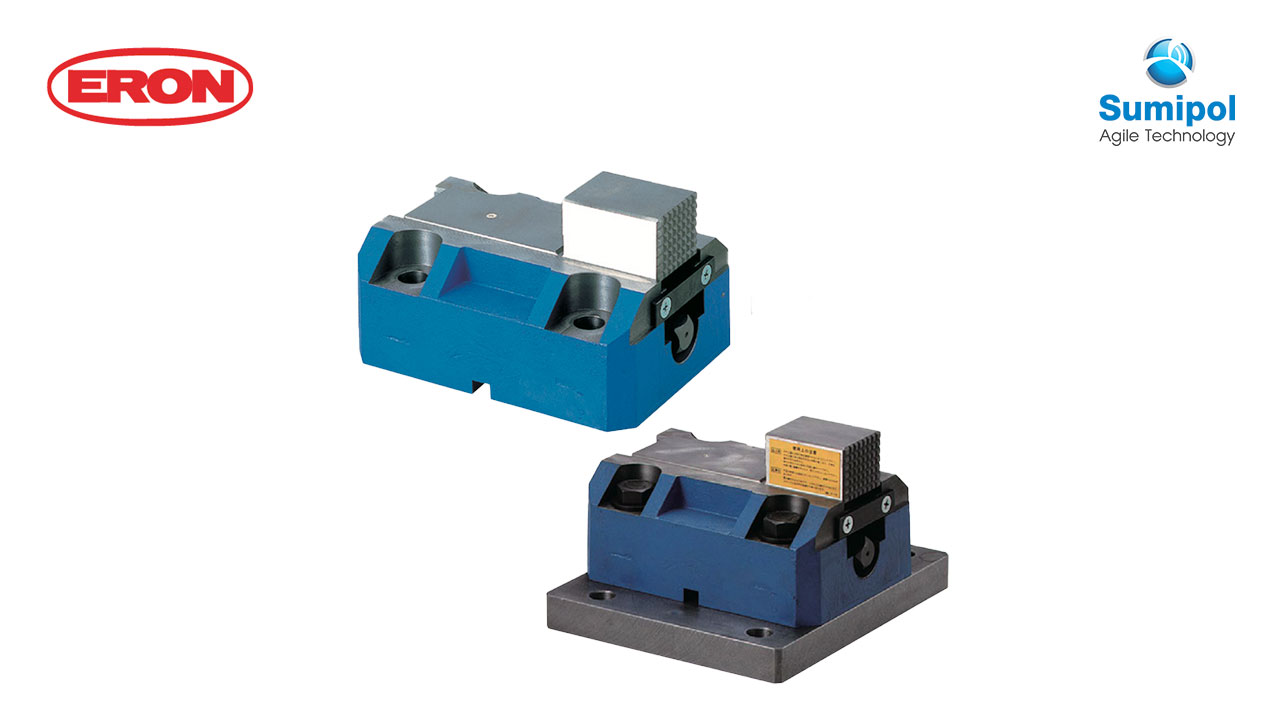

4-CLAW CLAMP

Material

MAIN BODY : FCD5
JAW : SCM42
BASE : S45C

Heat treatment

MAIN BODY: ANNEALING
JAW: HRC57 HEAT TREATMENT

Surface treatment MAIN BODY: PAINTING

Feature

  • Maximum clamping force 4 kN (tightening torque: 19N・m)

◦ Workpieces must not directly contact with the top surface of the Jaw.
◦ Use a height cylinder, block, or the like to raise the workpiece.
◦ When you cannot secure the 4-jaw clamp onto the machine table, substitute with a plane clamp or the like.

No.ModelCompatible T-slot WidthClamping Force (kN)Weight(kg)
KT4Vertical lathe224029
KT4BDouble column machine22.24.284045
