| No. | Overall height | Diameter of Body | Allowable Load (kN) | Weight(kg) |
| CS50 | 40-50 | 40 | 12 | 0.27 |
| CS70 | 50-73 | 40 | 14 | 0.35 |
| CS100 | 70-100 | 45 | 20 | 0.63 |
| CS150 | 94-150 | 50 | 20 | 1.1 |
| CS250 | 150-250 | 60 | 35 | 2.45 |
ERON

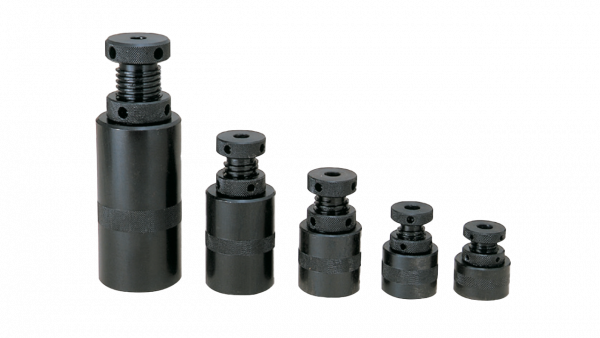

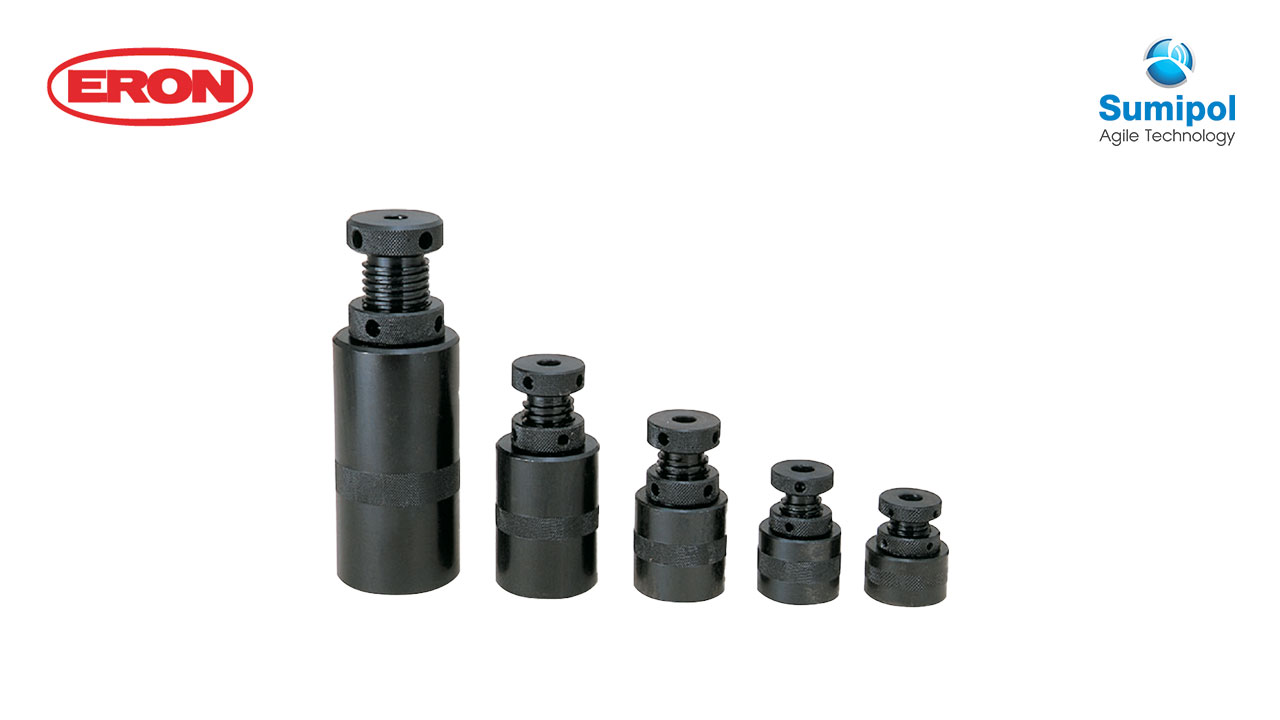

CLAMP SUPPORT SCREW JACK
Material S45C
Heat treatment SCREW:HRC35 ± 5 HEAT TREATMENT
Surface treatment BLACKENED
Feature
- The clamping support screw jack is useful for supporting various clamps.
- When 1 screw is insufficient or when the height is not enough, 2 or 3 screws can be used by stacking them up. (all screws must be the same size)
- Using an attachment is also useful when supporting an irregularly-shaped workpiece.
