Mitutoyo

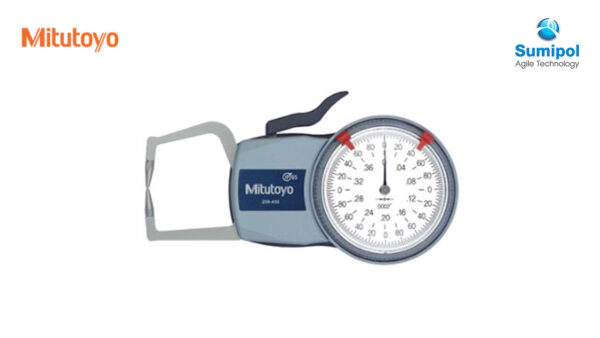

Dial Caliper Gages External Type

เกจวัดคาลิเปอร์หน้าปัดวัดภายนอก Mitutoyo ได้รับการออกแบบมาเพื่อใช้เป็นเกจเปรียบเทียบสำหรับเส้นผ่านศูนย์กลางภายในและการวัดเชิงเส้น

Download Catalogue
หมวดหมู่: ,

ขนาด:

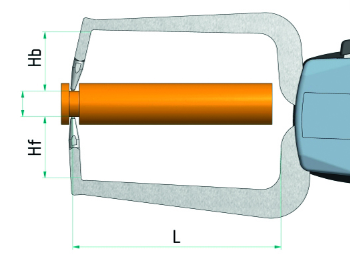

Length (Hb) // Length (Hf) // Length (L)

download (4)

Type Special Calipers Display Method Dial
Measuring Range(mm) 0 – 50mm Max. Measuring Depth L 167mm
Measuring Contact Type KK Size Ball Ø3mm
Length Hb 30mm Length Hf 30mm
Accuracy ±0.05mm Graduation 0.05mm

Inch

Range Order No Graduation Accuracy Max.
Measuring
Depth L		 Length
Hb		 Length
Hf		 Measuring
Contact Type		 Size Mass
0-.40in 209-450 .0002in .0008in 1.37in .75in .75in K/K 1.5mm 170g
0-40in 209-451 .0002in .001in 1.37in .85in .58in T 6mm 560g
0-0.2in 209-452 .0002in .0008in 1.37in .75in .035in RK/K 1.5mm 165g
0-40in 209-453 .0002in .0008in 1.37in .75in .035in R/S Chisel Ro.4,1.5mm 40g
0-.80in 209-454 .0005in .0015in 3.2in .97in .97in S Chisel R0.4mm 210g
0-.80in 209-455 .0005in .0015in 3.2in .97in .97in K/K 1.5mm 210g
0-.80in 209-456 .0005in .0015in 3.2in .97in .10in RK/K 1.5mm 200g
0-.80in 209-457 .0005in .0015in 3.2in .97in .10in R/S Chisel RO.4,1.5mm 200g
0-.50in 209-789 .005in .005in 1.38in – – PR 2,Chisel RO.5mm 40g
0-.50in 209-790 .005in .005in 1.38in – – PR 2mm 40g
0-2.0in 209-916 .001in .002in 6.6in 1.2in 1.2in K/K 3mm 430g
0-2.0in 209-917 .001in .002in 6.6in 1.2in .18in RK/K 3mm 400g

Metric

Range Order No Graduation Accuracy Max.
Mesuring
Depth L		 Length
Hb		 Measuring
Contact Type		 Size Weight
0-10mm 209-402 0.005mm 0.015mm 35mm 19.1mm K/K 1.5mm 240g lbs
0-10mm 209-403 0.005mm 0.02mm 35mm 21.7mm T 6mm 175g 0.26lbs
0-20mm 209-404 0.01mm 0.02mm 85mm 7mm K/K 1.5mm 210g 0.31lbs
0-20mm 209-405 0.01mm 0.03mm 85mm 7mm S 0.4mm 210g 0.31lbs
0-20mm 209-406 0.01mm 0.03mm 80mm 7mm R/S Chisel R0.4,1.5mm 200g 0.31lbs
0-20mm 209-407 0.01mm 0.03mm 80mm 7mm RK/K 1.5mm 200g 0.31lbs
0-10mm 209-603 0.1mm 0.1mm 33mm – PR 2mm 40g 0.09lbs
0-10mm 209-843 0.1mm 0.1mm 36mm – PK 2,Chisel RO.5mm 40g 0.09lbs
0-50mm 209-911 0.05mm 0.05mm 167mm 30mm KK Ball 3mmmm 430g 0.64lbs
0-50mm 209-912 0.05mm 0.05mm 169mm 30mm RK/K Ball 3mm 400g 0.68lbs
0-50mm 209-921 0.05mm 0.05mm 167mm 30mm S Chisel R0.75mm 490g lbs
