ERON

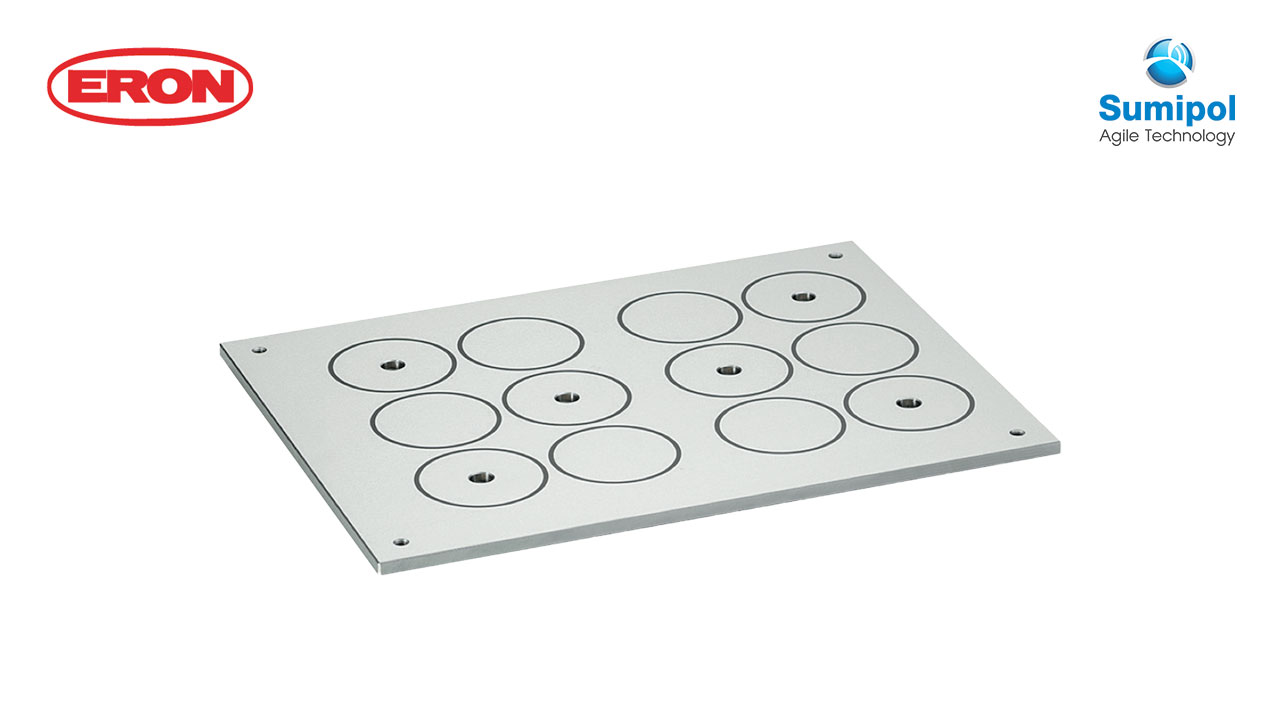

MAGNETIC SELF-CUT PLATE

Material STRUCTURAL STEEL, PLASTIC

Feature

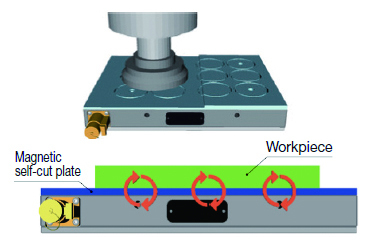

  • Protects the top surface of the magnetic chuck
  • Improves the precision of the top surface of the magnetic chuck
    (enables self-cut)Self-cut Allowance : 4 mm
    Accessories : Attachment bolt MB × 1 Maximum tightening torque 1 Nm

Number of Poles Compatible Chucks Weight (kg)
MSC304HD70 12 MTB304HD70 9.4
MSC306HD70 18 MTB306HD70 13.6
MSC308HD70 24 MTB308HD70 17.8
MSC310HD70 30 MTB310HD70 21.5
MSC404HD70 16 MTB404HD70 12
MSC406HD70 24 MTB406HD70 17.2
MSC408HD70 32 MTB408HD70 22.6
MSC410HD70 40 MTB410HD70 27.2
MSC504HD70 20 MTB504HD70 14.3
MSC506HD70 30 MTB506HD70 20.6
MSC508HD70 40 MTB508HD70 27.1
MSC510HD70 50 MTB510HD70 32.7
MSC606HD70 36 MTB606HD70 25.5
MSC608HD70 48 MTB608HD70 33.5
