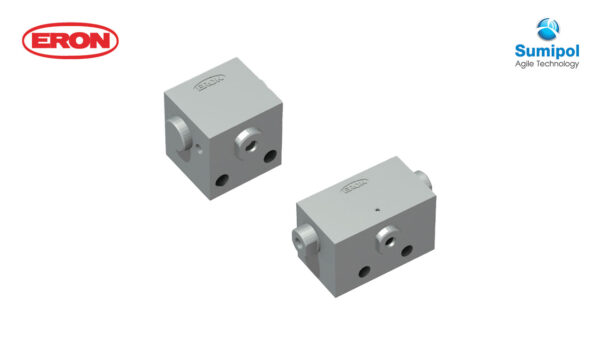

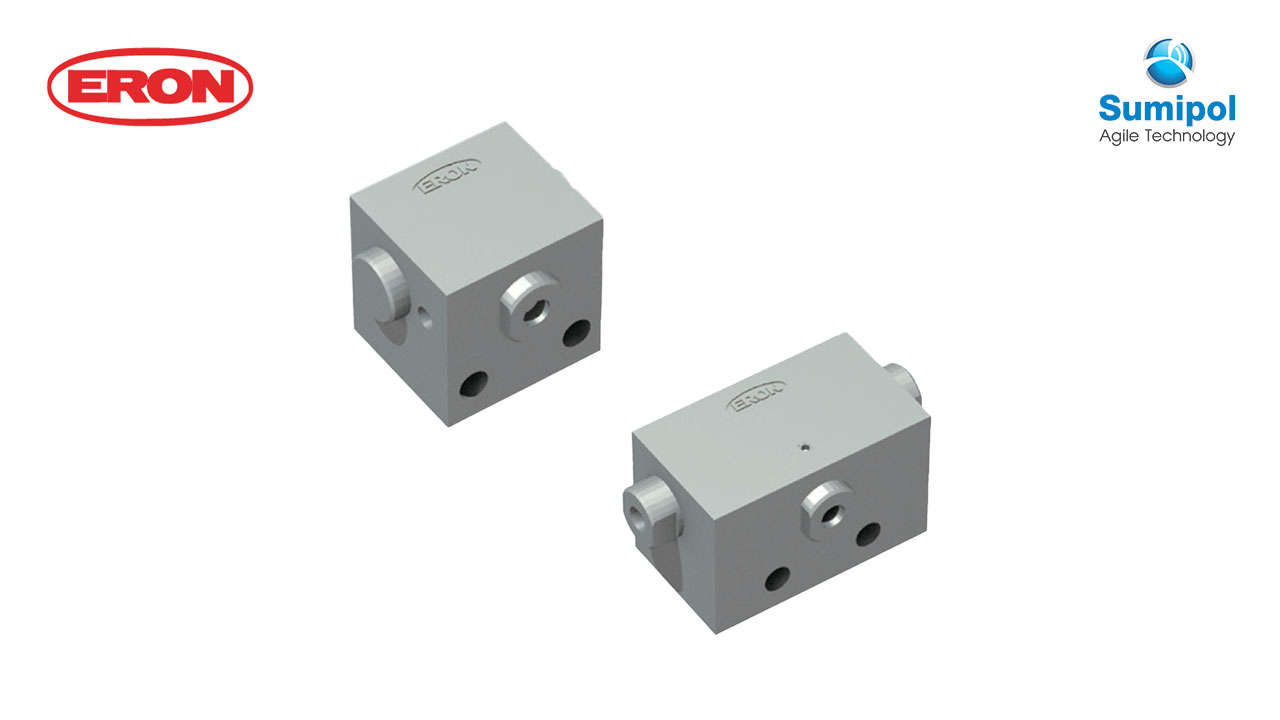

MULTI AUTO CLAMPS – GUIDE BAR TYPE [SERIES TYPE]

Material

CLAMP BLOCK : S5C
CLAMP PIN : SKD11

Heat treatment

CLAMP BLOCK : HRC5 HEAT TREATMENT
CLAMP PIN : HRC6 HEAT TREATMENT

Component Parts


Component PartsQuantity
1Clamp Block1
2Clamp pin (input)1
3Clamp pin (output)1



Optional


Guide Bar MT12-AG

Extension Bar MT12-S

* For guide bars and extension bars, provide us with the A dimension and we will give you a separate quote.



TypeName

Tapped Hole

Weight (kg)
Input SideOutput Side
StandardGuide Bar TypeMT121AYesYes0.19
StandardGuide Bar TypeMT122AYesNo0.2
Type with Return MechanismMain Body (Hole Type)MR121AYesYes0.31
