Component Parts
Component Parts | Quantity | |

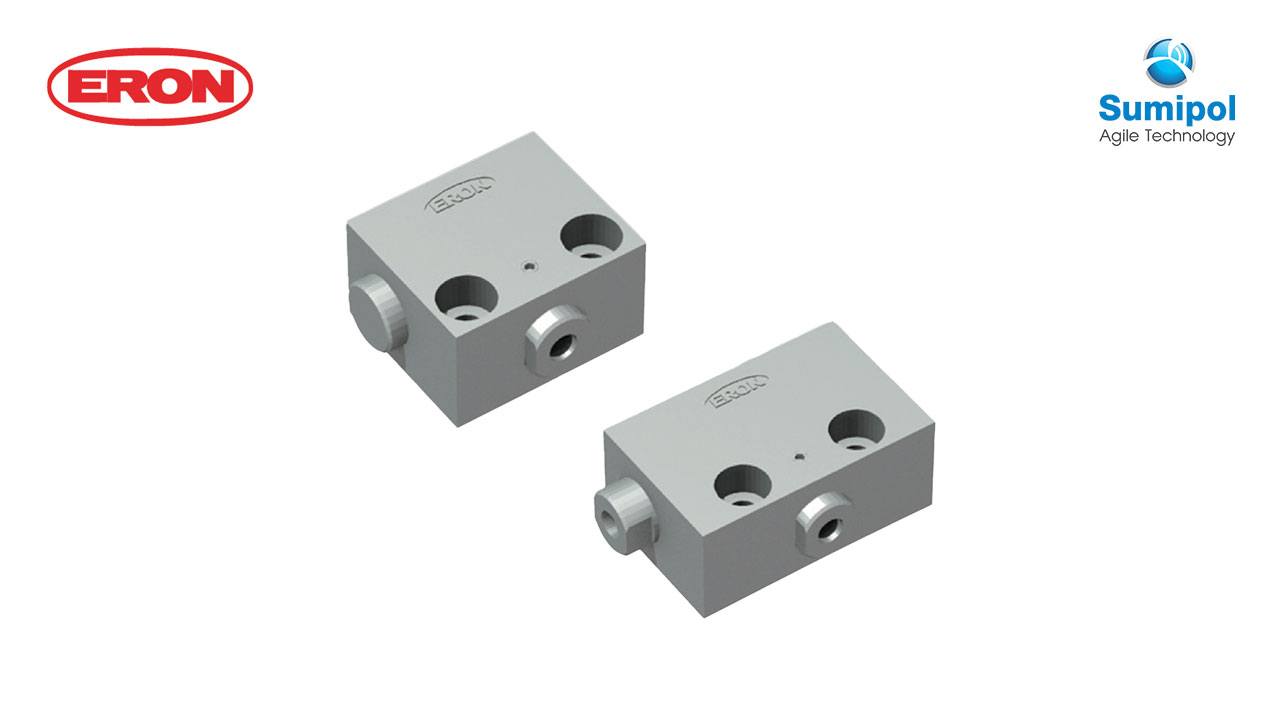

1 | Clamp Block | 1 |
2 | Clamp pin (input) | 1 |
3 | Clamp pin (output) | 1 |
Optional
Extension Bar MT12-S
* For guide bars and extension bars, provide us with the A dimension and we will give you a separate quote.
Material
Heat treatment
Component Parts | Quantity | |
1 | Clamp Block | 1 |
2 | Clamp pin (input) | 1 |
3 | Clamp pin (output) | 1 |
Extension Bar MT12-S
* For guide bars and extension bars, provide us with the A dimension and we will give you a separate quote.
Type | Name | № | Tapped Hole | Weight (kg) | |
Input Side | Output Side | ||||
Standard | Branch 1-side push | MT123R | Yes | Yes | 0.15 |
Standard | Branch 1-side push | MT123R3 | Yes | No | 0.16 |
Standard | Branch 1-side push | MT123L | Yes | Yes | 0.15 |
Standard | Branch 1-side push | MT123L3 | Yes | No | 0.16 |
Type with Return Mechanism | Branch 1-side push | MR123R | Yes | Yes | 0.22 |
Type with Return Mechanism | Branch 1-side push | MR123L | Yes | Yes | 0.22 |
