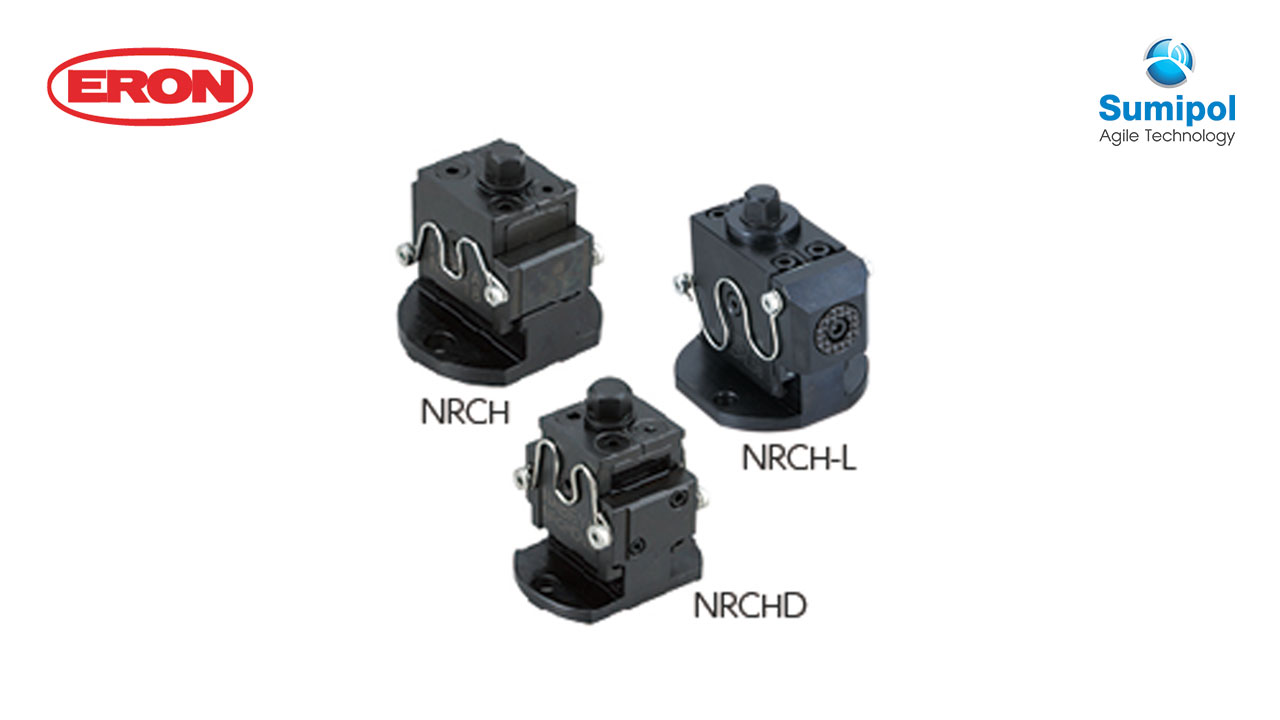

Nut Ranner Type H

Feature

  • Nut ranner clamps type H which is horizotal clamping.
  • Torque controlling, quick clamping and automation is possible with a nutrunner or electric screw driver or impact wrench.
  • Automated system without hydraulic piping can be established easily.
  • Even if the clamp bolt is too loosed, the component doesn’t be disassembled due to special designing
  • Single type is one side clamping
  • Double type is both side clamping

Single Type


Model No.Total LengthWidthClamping

Stroke

Maximum

Torque

N.m

Clamping Force

kN

Weight

kg

NRCH0865693.51680.7
NRCH1368763.530131
NRCH1875763.541181.2
NRCH08L6995101251.4



Specificaton Double Type


Model No.Total LengthWidthClamping

Stroke

Maximum

Torque

N.m

Clamping Force

kN

Weight

kg

NRCHD08657371650.6
NRCHD136874.673081
NRCHD187575748131.1
