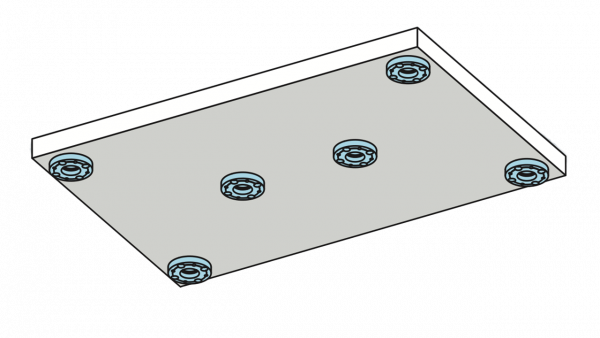

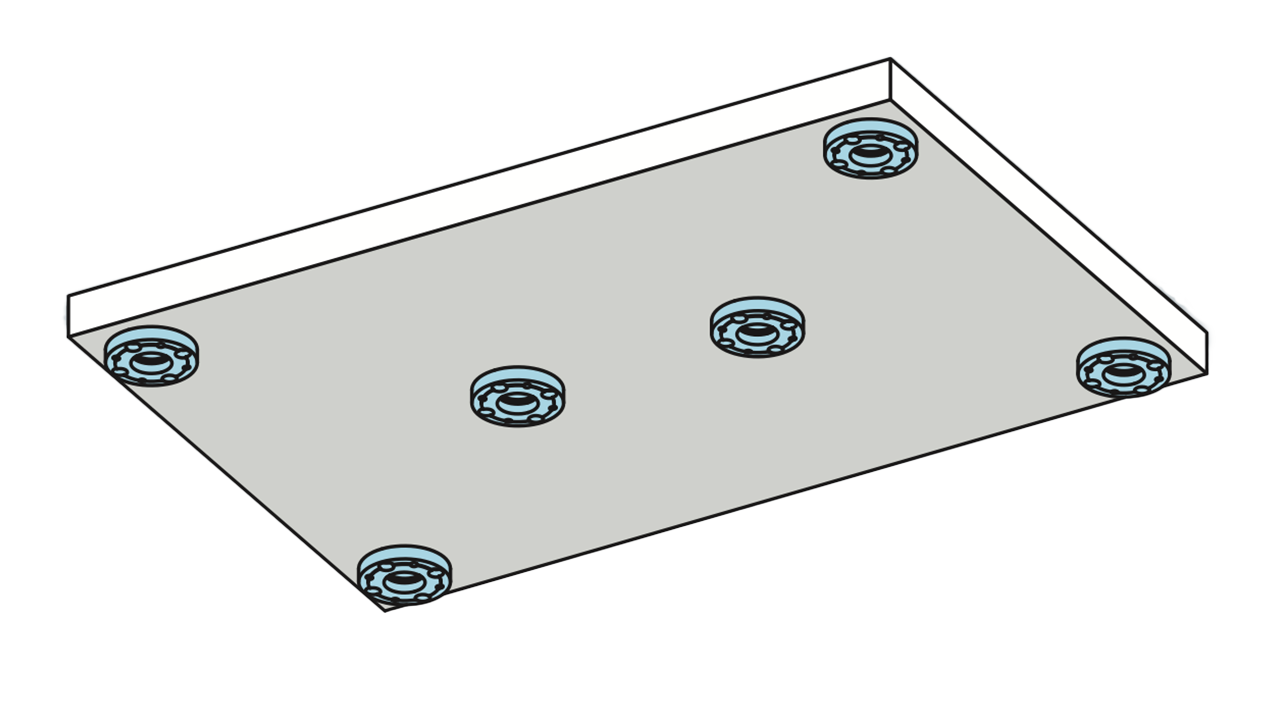

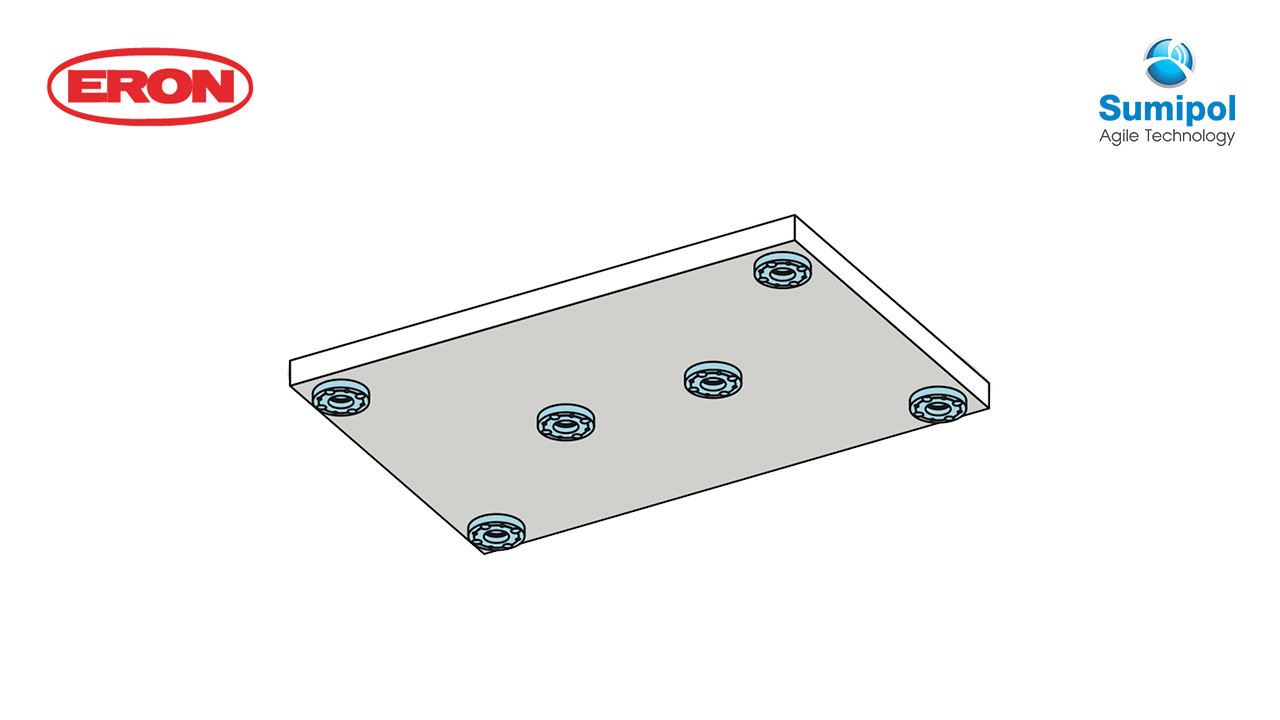

PLATE WITH Q-LOCK ELEMENTS (FLAT)
Q-Lock Elements：Heat treatment (HRC55)
Q-Lock Elements：Non-electrolytic plating
- This is an attachment plate for the table with screw-type Q-Lock Elements.
- Locating holes are fitted with hardened bushes, and finished with a high pitch accuracy of ± .15.
- Should be used with holes and grooves machined by the user to match the workpiece as an attachment plate for the base plate with Q-Lock Elements.
