ERON

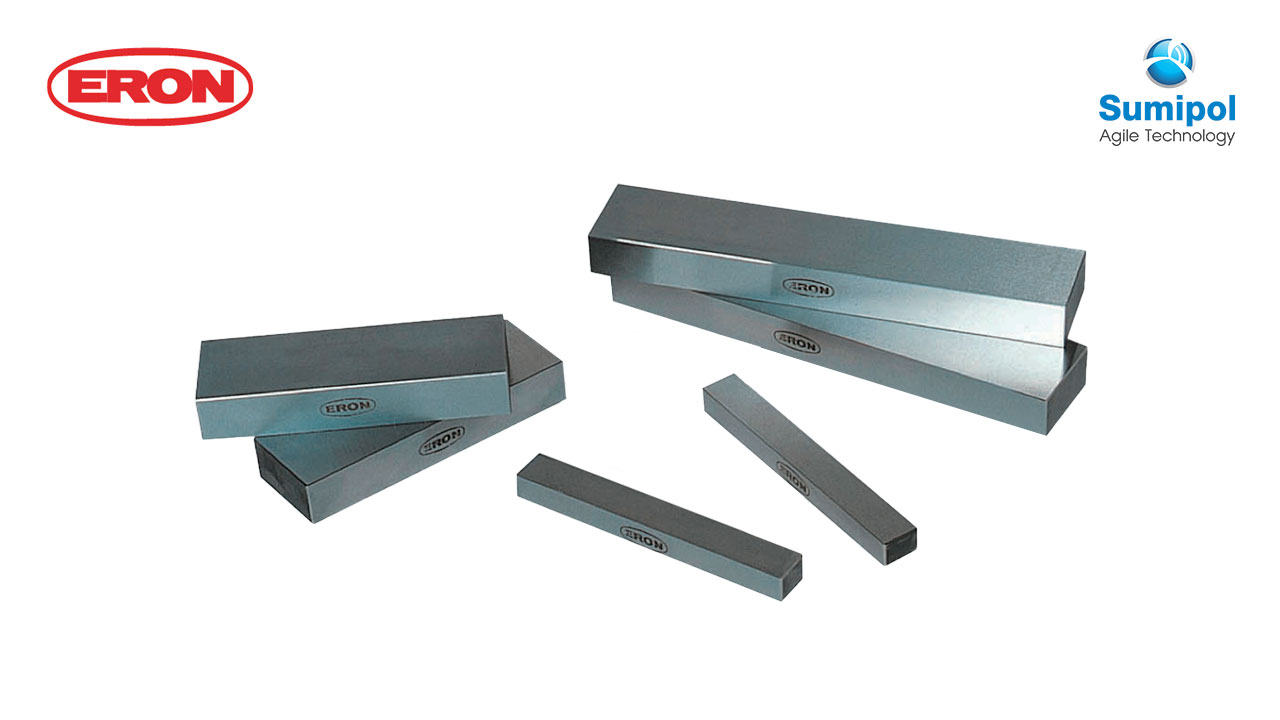

PRECISION PARALLEL BLOCK

Material

S5C,FC3

Heat treatment

HP1-8 ： HRC5 ± 3 HEAT TREATMENT
HP21-34 ： HRC5 ± 3 HEAT TREATMENT
HP9-2 ： ANNEALING

Feature

4 faces except both end faces are ground finished.
Using parallel blocks keeps machining works stable which maintains parallelism, enabling you to perform precision machining and improve efficiency.

Download Catalogue

หมวดหมู่: เครื่องมือตัดแต่งขึ้นรูปโลหะ, อุปกรณ์การจับยึดและชิ้นส่วนเครื่องจักร

Technical Specifications

No.	ThickNess	Overall height	Total length	MATERIAL QUALITY	Weight(kg)
HP1	10	20	150	S50C	0.2
HP2	15	20	150	S50C	0.4
HP3	15	30	150	S50C	0.5
HP4	20	30	150	S50C	0.7
HP5	25	50	150	S50C	1.5
HP6	15	30	250	S50C	0.9
HP7	20	30	250	S50C	1.2
HP8	25	50	250	S50C	2.4
HP9	25	50	300	FC300	2.7
HP10	40	50	300	FC300	4.4
HP11	40	75	300	FC300	6.6
HP12	50	50	100	FC300	1.8
HP13	50	50	150	FC300	2.7
HP14	50	50	250	FC300	4.6
HP15	50	100	150	FC300	5.5
HP16	50	100	250	FC300	9.1
HP17	50	100	300	FC300	11
HP18	100	100	150	FC300	11
HP19	100	100	250	FC300	18.3
HP20	100	100	300	FC300	21.9
HP21	12	25	150	S50C	0.4
HP22	10	20	200	S50C	0.3
HP23	15	20	200	S50C	0.5
HP24	15	30	200	S50C	0.7
HP25	20	30	200	S50C	0.9
HP26	25	50	200	S50C	2
HP27	8	15	100	S50C	0.1
HP28	10	20	100	S50C	0.2
HP29	10	25	100	S50C	0.2
HP30	15	35	100	S50C	0.4
HP31	8	15	125	S50C	0.1
HP32	10	20	125	S50C	0.2
HP33	10	30	125	S50C	0.3
HP34	15	40	125	S50C	0.6
