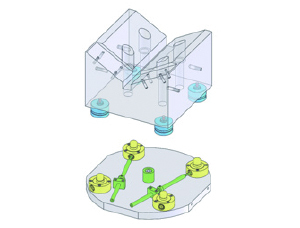

5 axis machining by embedded Q-lock elements to workpieces.
Dimensions of mounting process
| № | A +0.01/0 | B | C |
| QLTS26 | 20 | 6 | Ｍ 8×Ｐ1.25 depth 16 |
| QLTS40 | 25 | 6 | Ｍ12×Ｐ1.75 depth 24 |
ERON

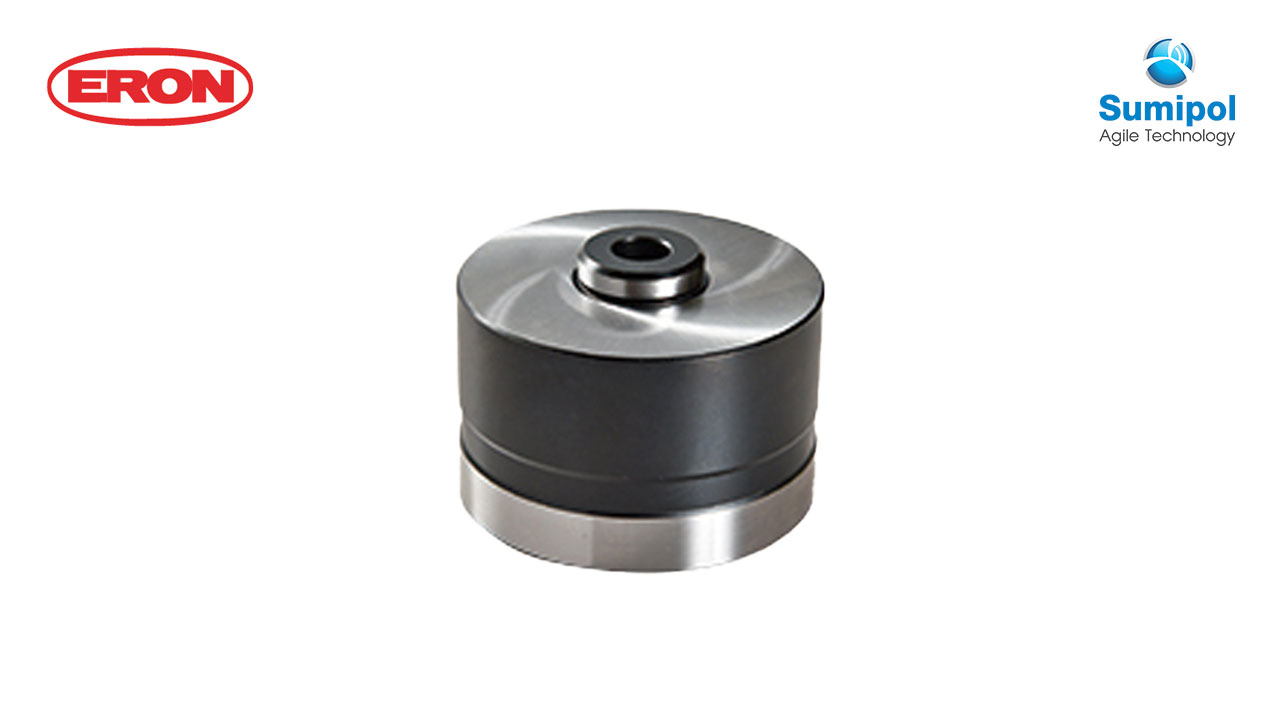

Q-LOCK ELEMENTS/BUSHE (Raised, Side Screw Type)
Material CRMO(SCM440)
Heat treatment Main body : Hardened HRC55
Feature
■In case of multiple uses of Q-lock elements/pins (side screw type), helpful to avoid the interferences with pins.
■Easier arrangement of jigs due to less mounting processes.
| Type | № | Outer Diameter | Inner Diameter | Overall Diameter | Weight (kg) |
| Locating bush | QLTS26KRB | 58 | 26 | 42 | 0.7 |
| Locating bush | QLTS40KRB | 88 | 40 | 62 | 2.4 |
| Clamping bush | QLTS26KCB | 58 | 26 | 42 | 0.7 |
| Clamping bush | QLTS40KCB | 88 | 40 | 62 | 2.4 |
