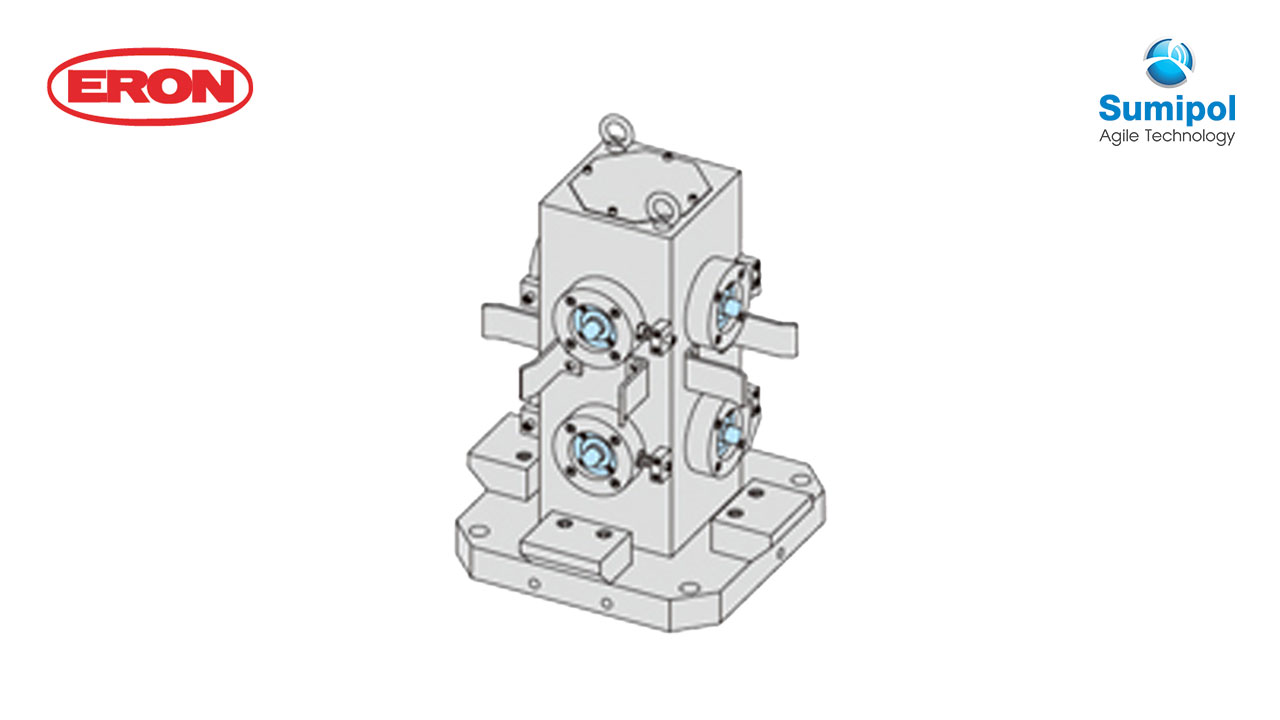

Q-LOCK ELEMENTS EMBEDDED BLOCKS, 4 FACES, FOR MOUNTING VISES

Material

Block : casting(FC250)
Q-lock element : CRMO(SCM440)

Heat treatment

Block : Annealed Q-lock element : Hardened (HRC55)

Surface treatment

Q-lock element : Electroless plating

Feature

• Block with Q-lock embedded for mounting machine vises.
• Quick locating, locking with combination of compatible bushes
• Location repeatability is within 3 microns
