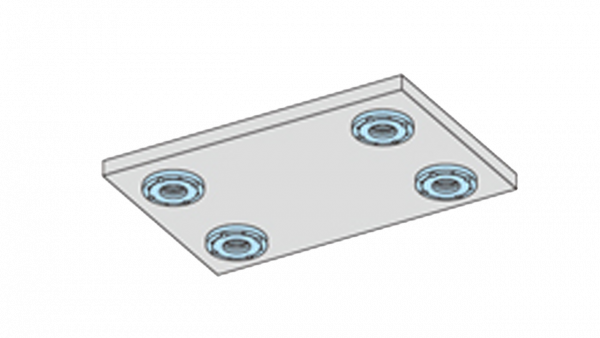

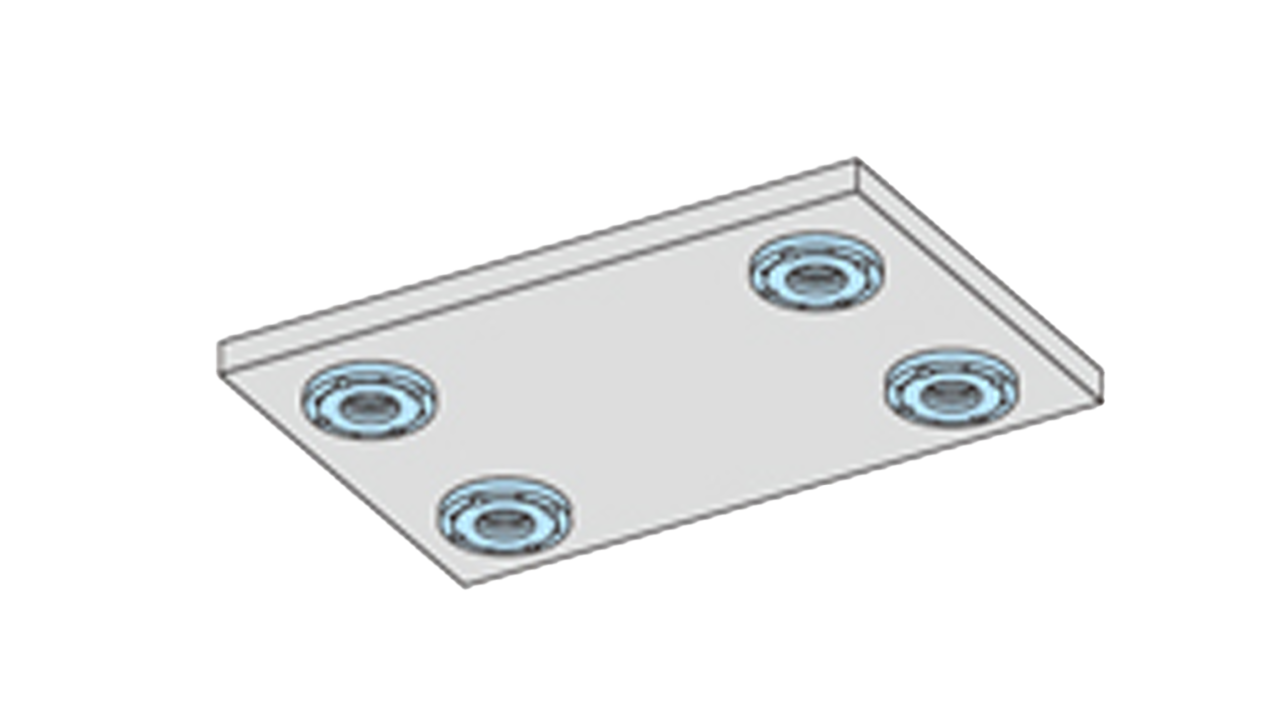

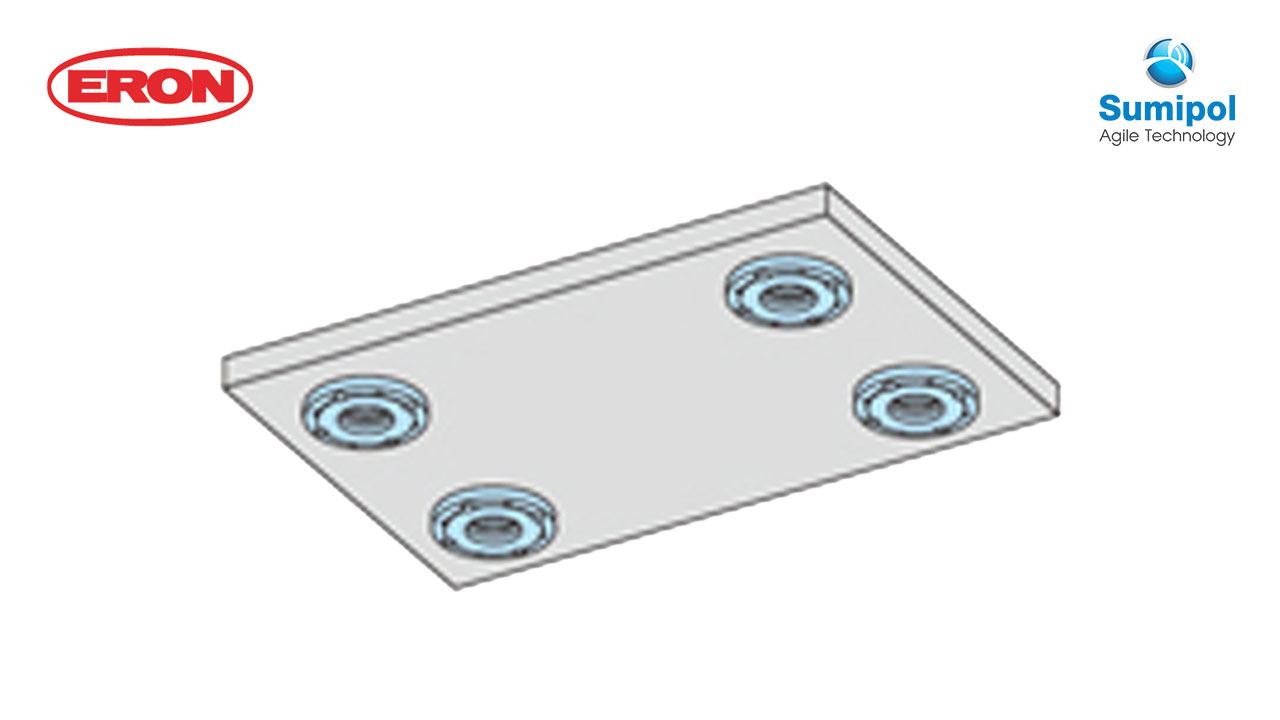

Q-LOCK ELEMENTS EMBEDDED PLATES (Flat Hydraulic)

Material

Plate : Medium carbon steel(S50C)
Q-lock element : CRMO(SCM420)

Heat treatment

Q-lock element : Hardened (HRC55)

Surface treatment

Q-lock element : Electroless plating
Height cylinder : blackened

Feature

  • Plate with Q-lock elements embedded (flat Hydraulic type)
  • Reference bushed holes keeping its pitch within +-0.015
  • Possible to machine suitable holes, slots additionally
No.Locating bushClamping bushWeight (㎏)
MCQ0540H-FQLA32RBQLA32CB49
MCQ0640H-FQLA40RBQLA40CB59
MCQ1060H-FQLA40RBQLA40CB142
