Q-LOCK ELEMENTS EMBEDDED PLATES (Screw Split Type)

Material

Plate : Medium carbon steel(S50C)
Q-lock element : CRMO(SCM440)
Height cylinders : CRMO(SCM420)

Heat treatment

Q-lock element/height cylinders :
Hardened (HRC55)

Surface treatment

Q-lock element : Electroless plating
Height cylinder : blackened

Feature

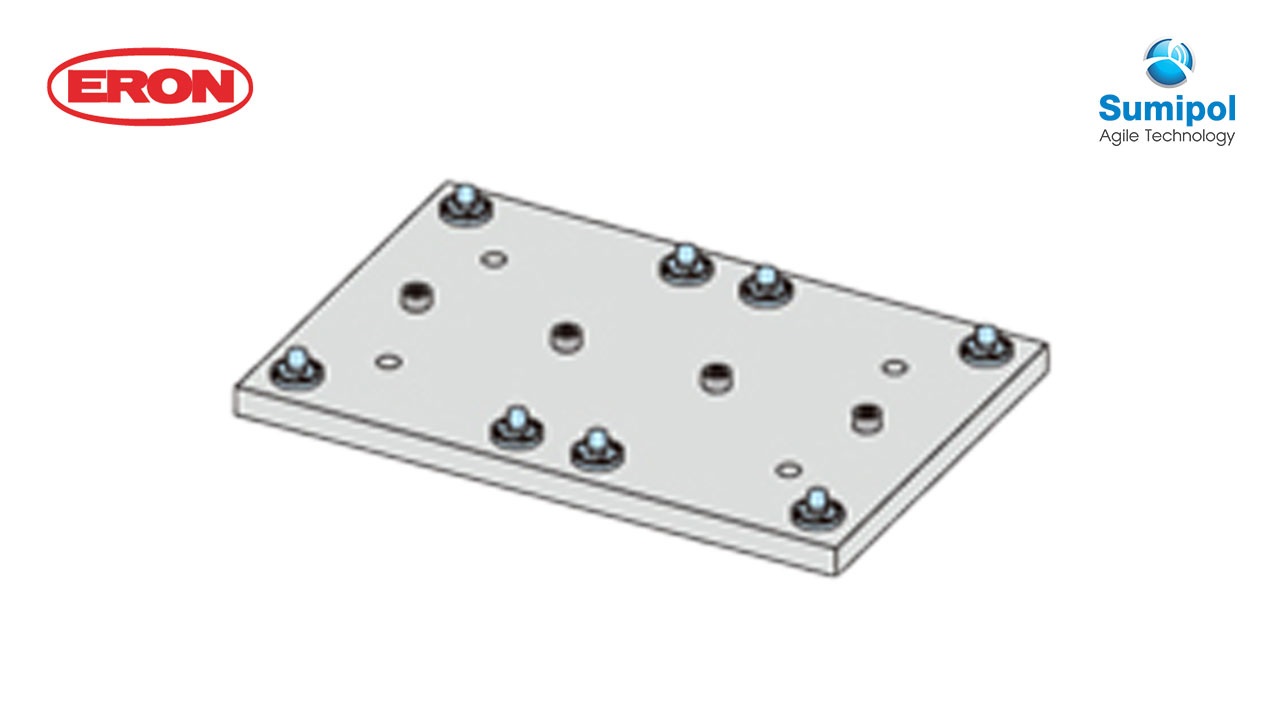

  • Plates with Q-lock elements built-in(screw split type)
  • Quick locating, and locking with combinations of compatible bushes.
  • Location repeatability is 3 microns.
No.Locating pinDia. PinClamping pinchild platesWeight (㎏)
MCQ0540VQLT19RPQLT19DPQLT19CP249
MCQ0640VQLT19RPQLT19DPQLT19CP258
MCQ1060VQLTS26RPVQLTS26RPVQLTS26CPV3246
