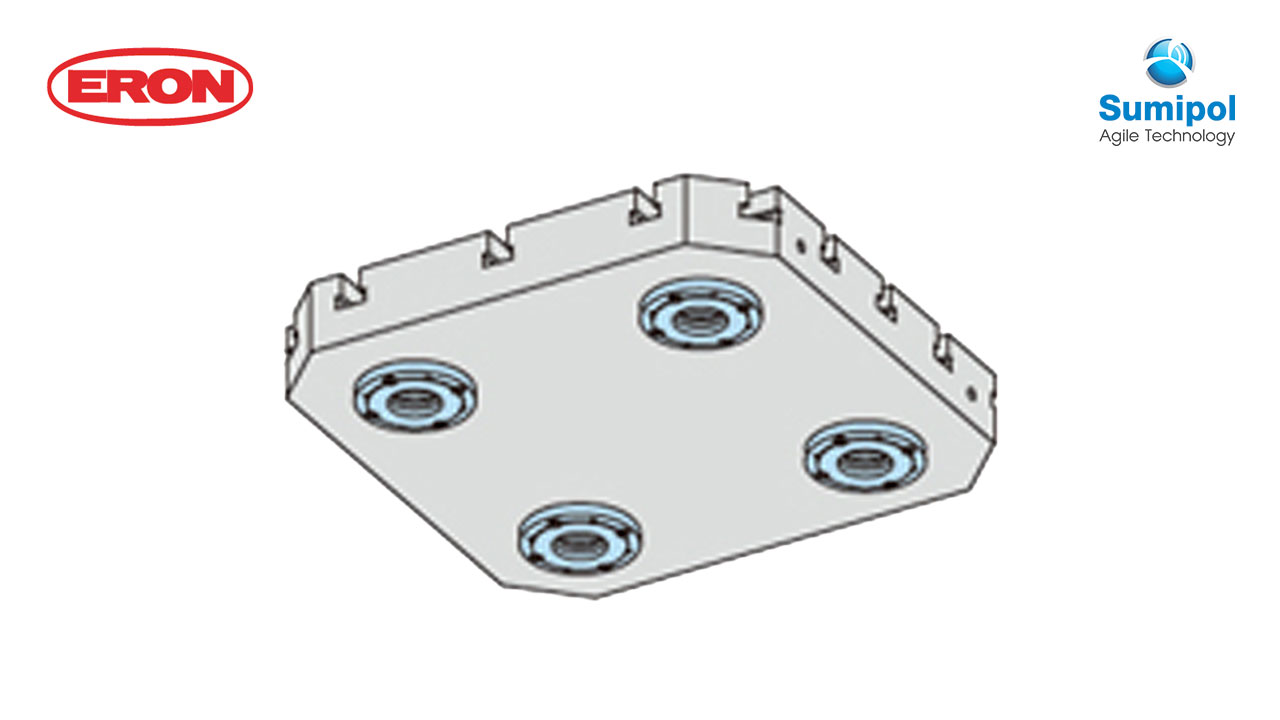

Q-LOCK ELEMENTS EMBEDDED PLATES (T-Slot, Hydraulic)

Material

Plate : Medium carbon steel(S50C)
Q-lock element : CRMO(SCM420)

Heat treatment

Q-lock element/Height cylinder : Hardened (HRC55)

Surface treatment

Q-lock element : Electroless plating

Feature

  • Plate with Q-lock elements embedded (T-slot, Hydraulic type)
  • Reference bushed holes keeping its pitch within +-0.015
No.Locating bushClamping bushWeight (㎏)
MCQH400-70TQLA32RBQLA32CB70
MCQH500-70TQLA40RBQLA40CB114
MCQH630-70TQLA40RBQLA40CB187
