ERON

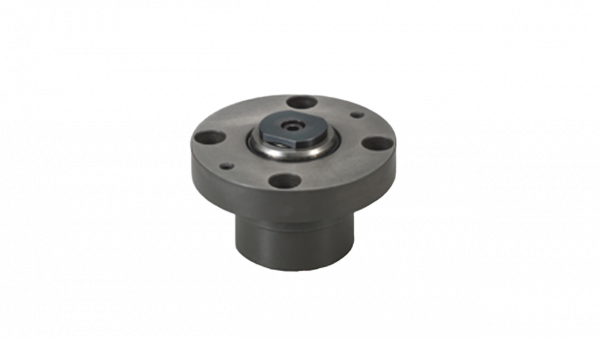

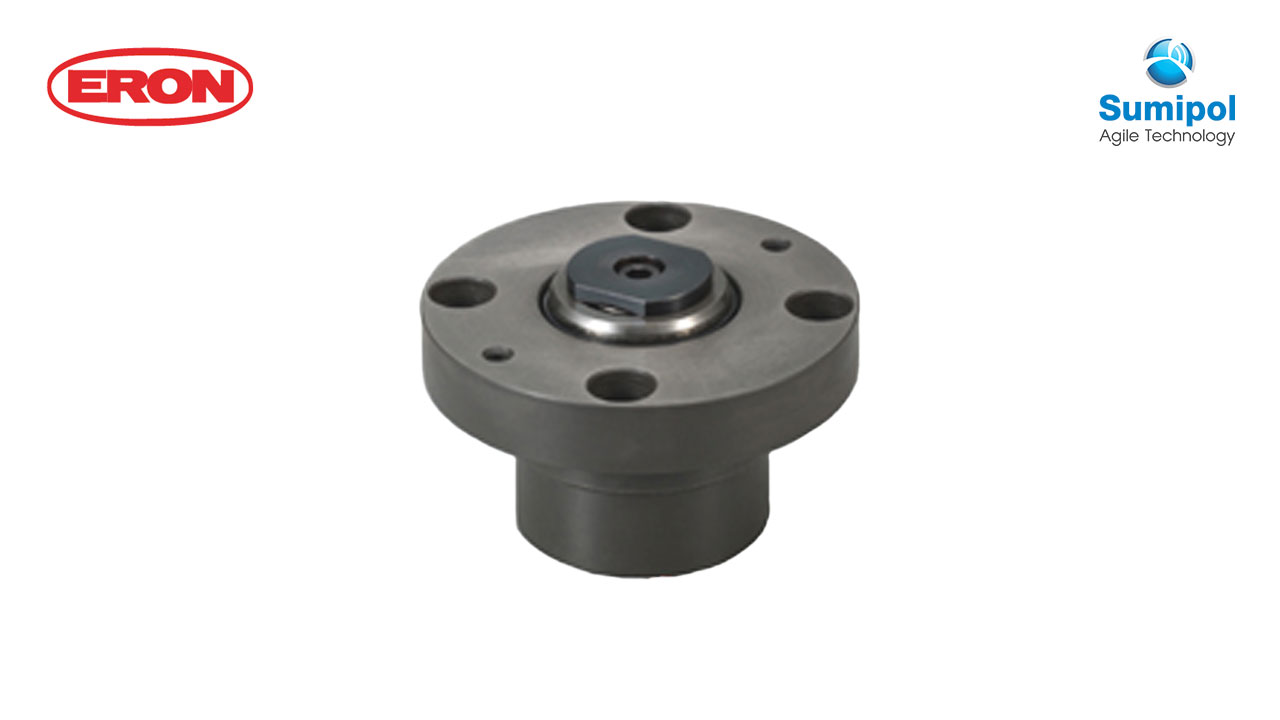

Q-LOCK ELEMENTS LIFT-CYLINDERS (Hydraulic)

Material: Main body : Stainless steel(SUS440C)

Heat treatment: Main body : Hardened(HRC55)

Feature

  • Air blowing for checking seating.
  • Stronger clamping force for heavy cutting.
  • Hydraulic power only for un-clamping and hydraulic pipe can be detached on machining operations.

Usage




Specifications


Normal working pressures4.6Mpa
Proof pressures7Mpa
Ambient temperature0~65℃



Hydraulic circuit


Order No.Compatible Q-lock elementsLift force(kN) At 4.6 MpaWeight (kg)
986438QL-LC07QLH32(S・D)2.21.6
986439QL-LC10QLH40(S・D)14.56.3
986440QL-LC16QLH48(S・D)42.814.5
