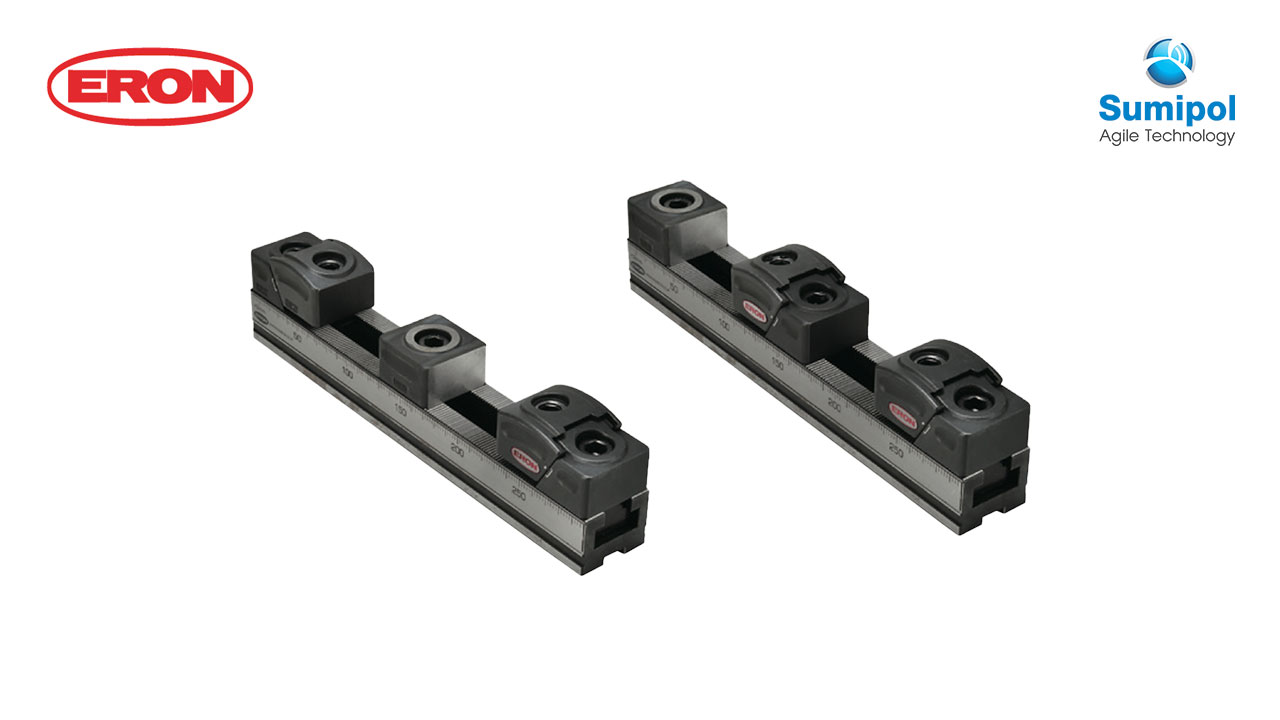

Wedge Clamping System

Material

Base : S50C
Fixed block, Main body, Movable part : SCM440

Heat treatment

Base, Movable body : HRC50 ± 3 heat treatment
Main body, Fixed block : HRC30 ± 3 heat treatment

Surface treatment Blackened

Specifications for Movable Part


Movable

Body

Shape

Movable

Body

Shape

Maximum

Torque

N.m

Maximum

Clamping

Force

kN

Weight

(kg)

KCS08-FJFlat3520100.3
KCS12-FJFlat4550200.7
KCS08-TJToe3520100.4
KCS12-TJToe4550200.7
KCS08-GJGrip3520100.3
KCS12-GJGrip4550200.7
KCS08-VJV Type3520100.4
KSC12-VJV Type4550200.7



Specifications for Main Body


Jaw

Width

Overall

diameter

Compatible

Mounting

Bolt

Weight

(kg)

KCS08-300-B3530M8x201.6
KCS08-400-B3530M8x202.1
KCS08-500-B3530M8x202.7
KCS12-300-B4535M10×202.3
KCS12-400-B4535M10×203.1
KCS12-500-B4535M10×203.9
KCS12-600-B4535M10×204.7



Specifications for Fixed Block


Weight (kg)
KCS08-KB0.2
KCS12-KB0.4

แบบสอบถาม

Product Name : Wedge Clamping System
