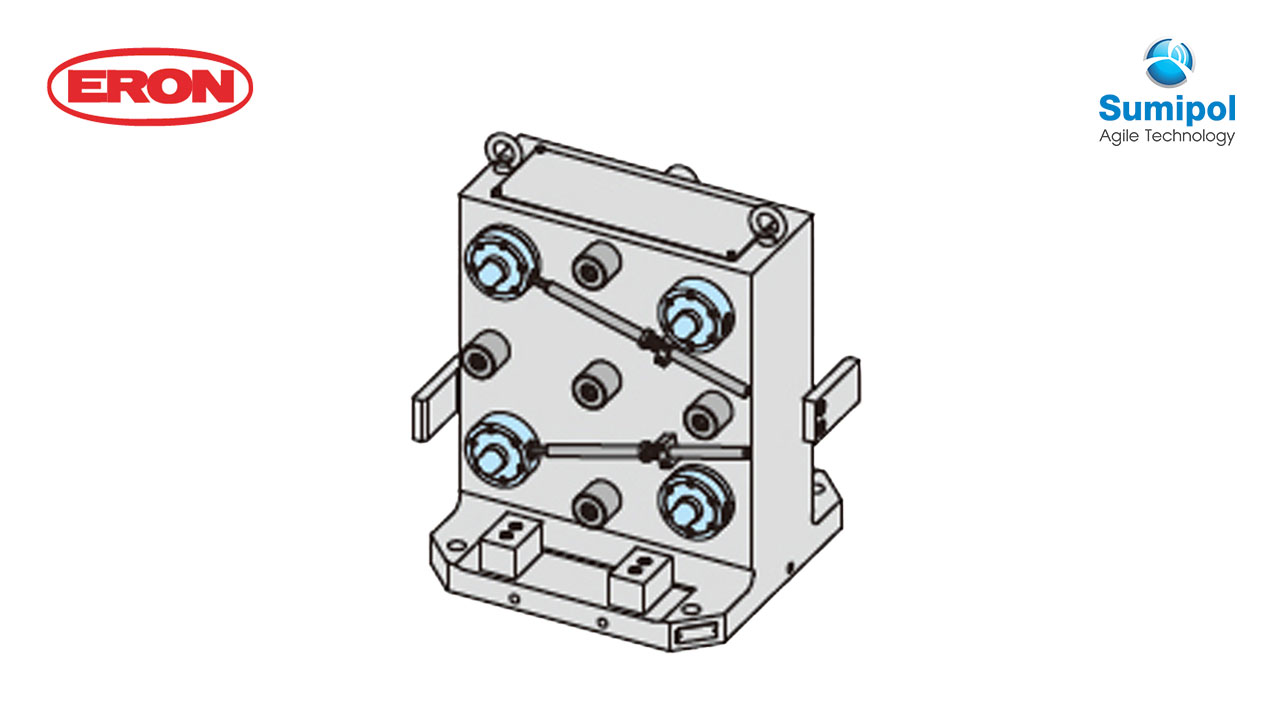

2 FACES/MC TOOLING BLOCKS WITH Q-LOCK ELEMENTS (SIDE)

Material

Angle plate:FC25
Q-Lock Element:SCM44
Height cylinder:SCM42

Heat treatment

Angle plate:Annealing
Q-Lock Element・Height cylinder:Heat treatment (HRC55)

Surface treatment

Q-Lock Element:Non-electrolytic plating
Height cylinder:Blackened

Feature

  • This is a 2-face angle plate with Q-Lock Elements.
  • Plates can be located and clamped with one-touch operation by combining with compatible bushes.
  • The position repeatability accuracy is within 3 μm.
No.Locating pinClamp pinWeight kg
TBQS400TSQLTS26RPVQLTS26CPV210
TBQS500TSQLTS40RPVQLTS40CPV358
TBQS630TSQLTS40RPVQLTS40CPV526

แบบสอบถาม

Product Name : 2 FACES/MC TOOLING BLOCKS WITH Q-LOCK ELEMENTS (SIDE)
