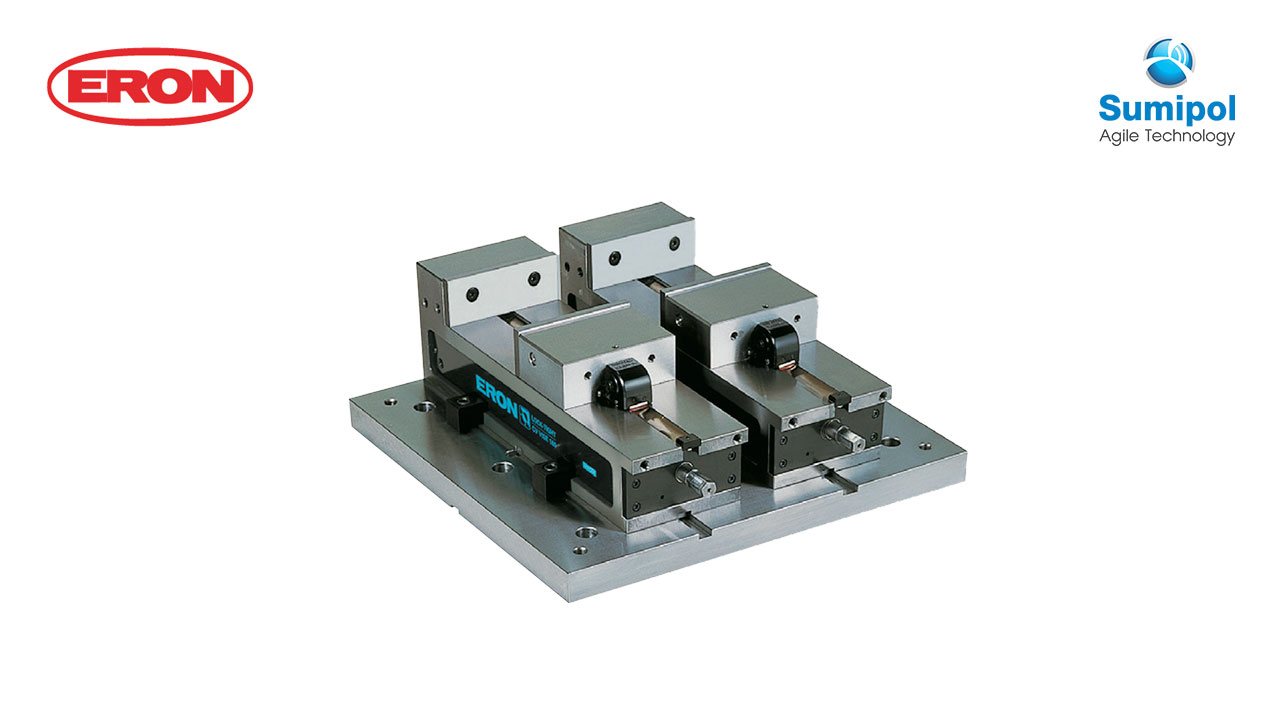

LOCK-TIGHT CV PRECISION MACHINE VISES – MULTIPLE JAW VISES

Feature

  • Useful for machining multiple workpieces of the same type, performing multiple machining processes, and machining long workpieces.
  • Locating to machine tables can be easily performed using guide blocks.
  • Can also be used as a single vise.

【Accessories】
Guide block … 2 pieces per set
Handle … 1

Download Catalogue
หมวดหมู่: , ,
№ Used Vise Width of plate Length of plate Overall height Weight (kg)
LTCV100-2 LTCV100 450 350 165 79
LTCV125-2 LTCV125 450 400 170 102
LTCV160-2 LTCV160 600 550 200 204
LTCV100H-2 LTCV100H 450 350 165 80
LTCV125H-2 LTCV125H 450 400 170 102
LTCV160H-2 LTCV160H 600 550 200 204
№ Used Vise Width of plate Length of plate Overall height Weight (kg)
LTCV100-3 LTCV100 600 350 165 113
LTCV125-3 LTCV125 650 400 170 146
LTCV160-3 LTCV160 800 550 200 287
LTCV100H-3 LTCV100H 600 350 165 114
LTCV125H-3 LTCV125H 650 400 170 146
LTCV160H-3 LTCV160H 800 550 200 287
№ Used Vise Width of plate Length of plate Overall height Weight (kg)
LTCV100-4 LTCV100 800 350 165 150
LTCV125-4 LTCV125 900 400 170 206
LTCV160-4 LTCV160 1000 550 200 372
LTCV100H-4 LTCV100H 800 350 165 152
LTCV125H-4 LTCV125H 900 400 170 206
LTCV160H-4 LTCV160H 1000 550 200 372
