Q-LOCK ELEMENTS EMBEDDED EXCHANGE PLATE WITH CHUCK 2 FACES BLOCK

Material

Plate : Medium carbon steel(S50C)
Q-lock element : CRMO(SCM440)

Heat treatment

Q-lock element : Hardened (HRC55)

Surface treatment

Q-lock element : Electroless plating

Feature

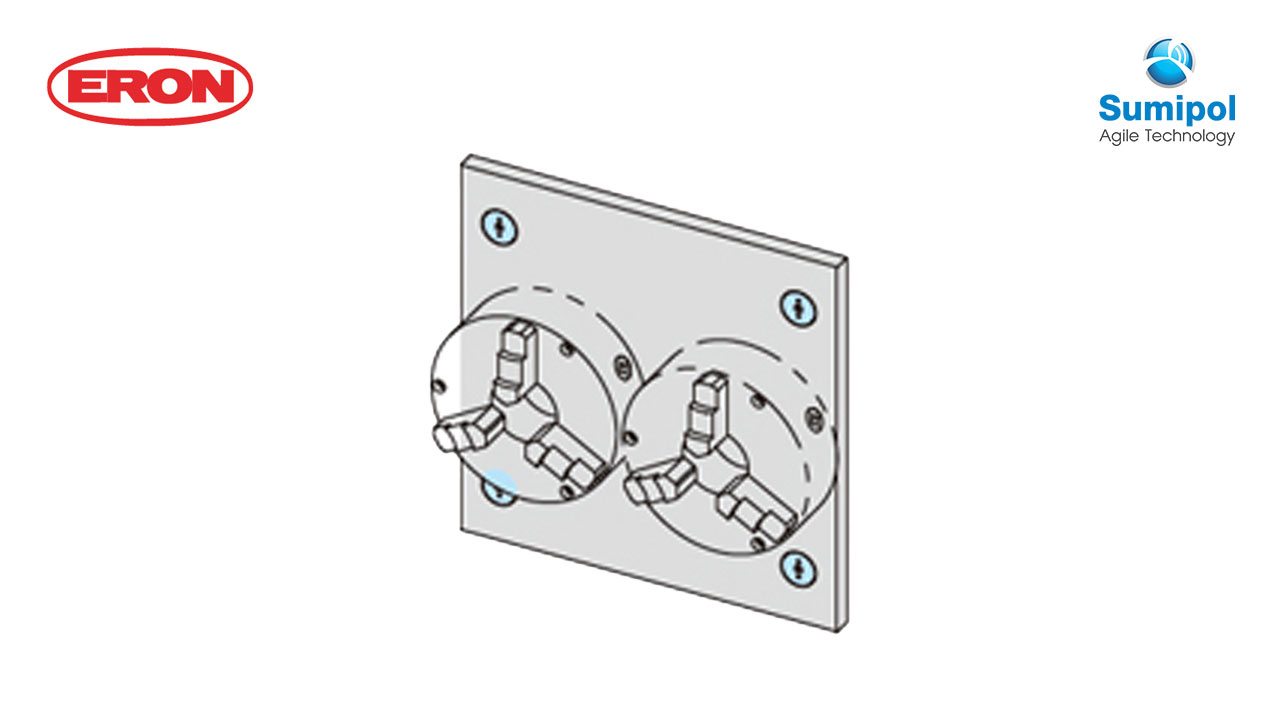

  • Plate with Q-lock elements embedded for mounting chucks on 2 faces block
  • Reference bushed holes keeping its pitch within +-0.015
  • Chuck is not inclusive for this item. Need your specifi ccations or supply.
No.Locating bushClamping bushWeight (㎏)
TBQS400TS-12INQLT26RBQLT26CB29
TBQS500TS-16INQLT40RBQLT40CB64
TBQS630TS-12INX2QLT40RBQLT40CB100
