|No.||Locating pin||Dia pin||Clamping pin||Child plate||weight (㎏)|

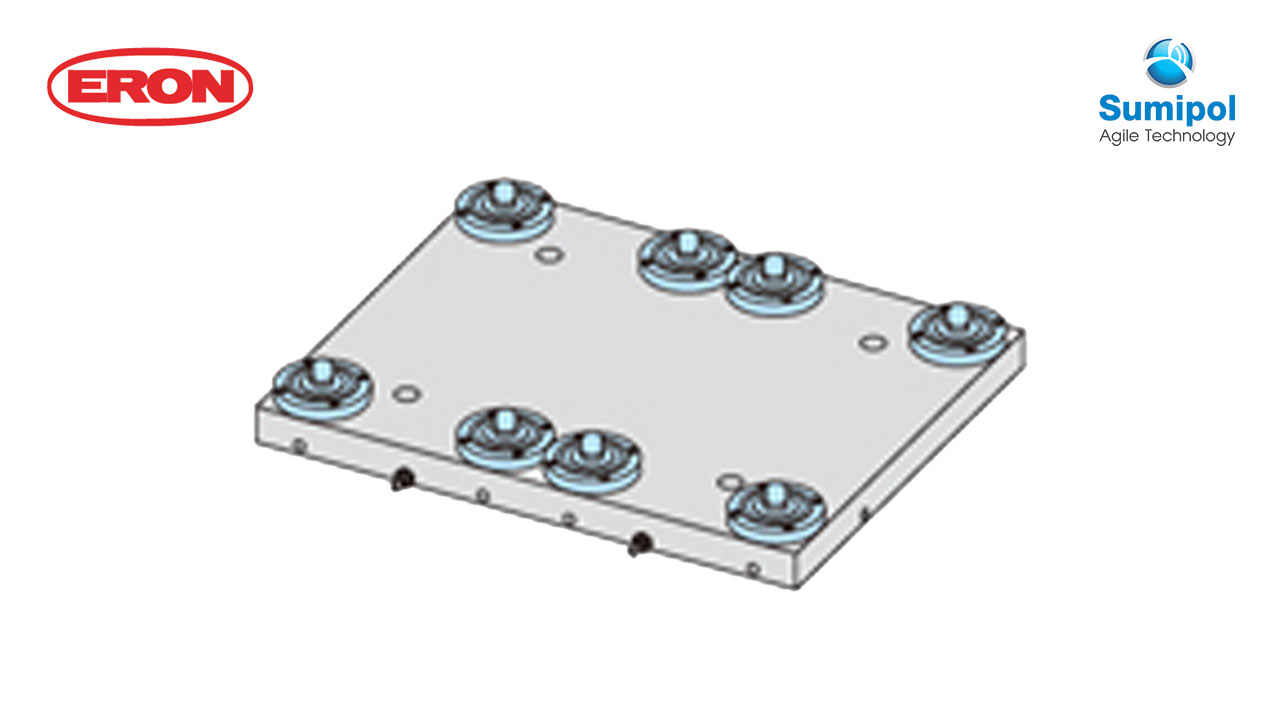

Q-LOCK ELEMENTS EMBEDDED PLATES (Air Split Type)
Plate : Medium carbon steel(S50C)
Q-lock element : Stainless steel(SUS440C)
Q-lock element : Hardened (HRC55)
- Plates with Q-lock elements embedded (air type)
- Quick locating and locking with combinations of compatible bushes.
- Location repeatability is 3 microns.
