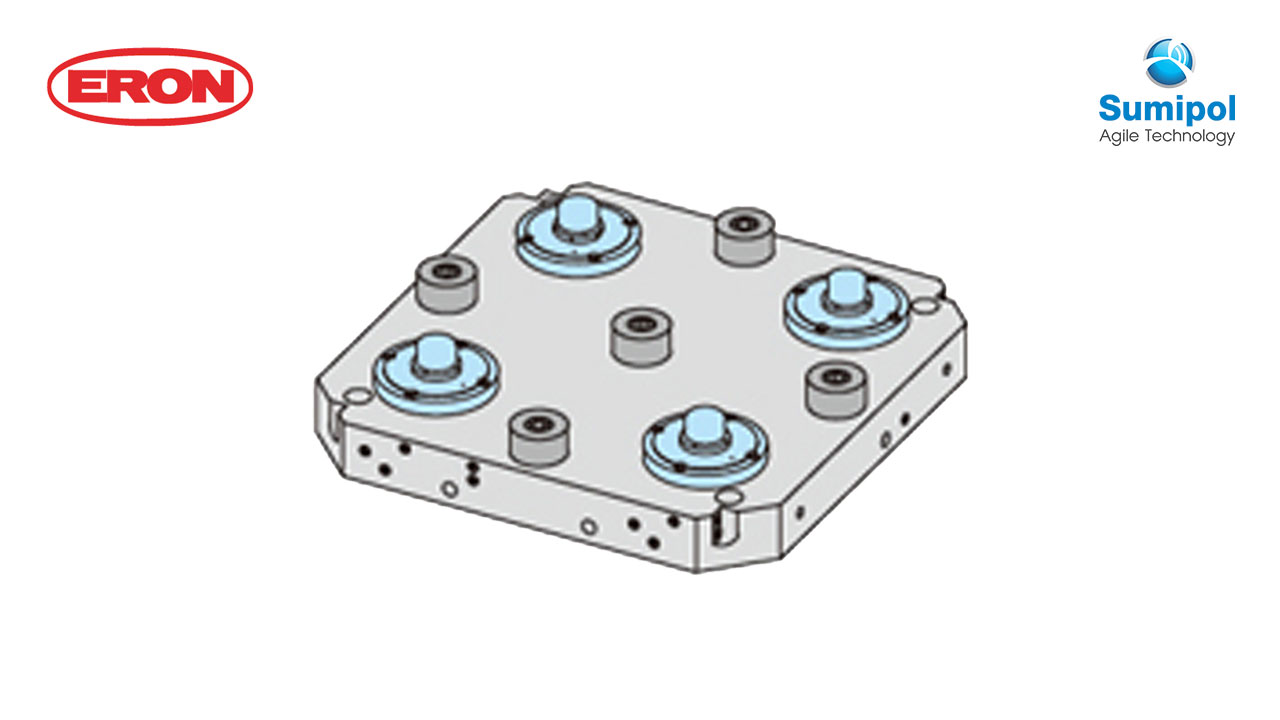

Q-LOCK ELEMENTS EMBEDDED PLATES (Hydraulic)

Material

Plate : Medium carbon steel(S50C)
Q-lock element : CRMO(SCM420)
Height cylinder : CRMO(SCM420)

Heat treatment

Q-lock element/Height cylinder : Hardened (HRC55)

Surface treatment

Q-lock element : Electroless plating
Height cylinder : Blackened

Feature

  • Pallet table with Q-lock embedded (Hydraulic type)
  • Quick locating, locking with combination of compatible bushes.
  • Location repeatability is 3 microns.
No.Locating pinDia pinClamp pinWeight kg
MCQH400QLSH32SRPQLH32SDPQLH32SCP60
MCQH500QLSH40SRPQLH40SDPQLH40SCP115
MCQH630QLSH40SRPQLH40SDPQLH40SCP178
