Q-LOCK ELEMENTS EMBEDDED PLATES

Material

Plate : Medium carbon steel(S50C)
Q-lock element : CRMO(SCM420)
Height cylinder : CRMO(SCM420)

Heat treatment

Q-lock element/Height cylinder : Hardened (HRC55)

Surface treatment

Q-lock element : Electroless plating
Height cylinder : Blackened

Feature

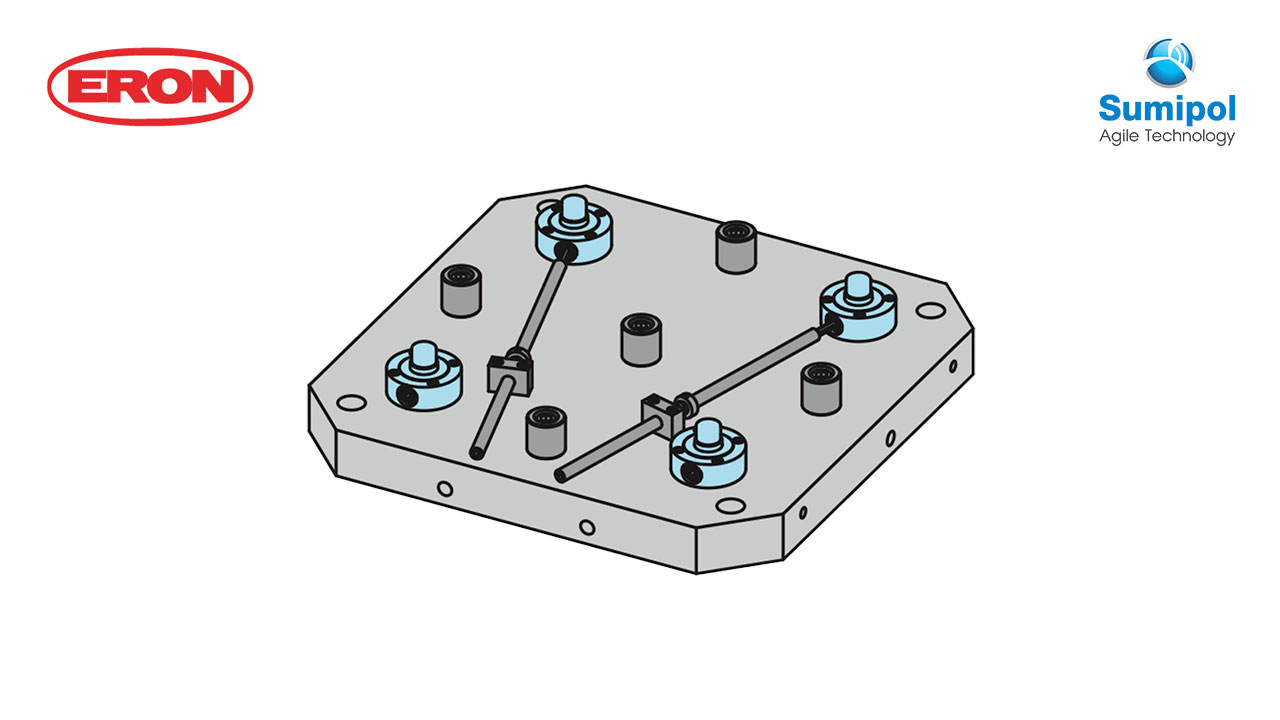

• Plates with Q-lock elements embedded(screw type)
• Quick locating and locking with combinations of compatible bushes.
• Location repeatability is 3 microns.
